String Light Suspension Kit with Stainless Steel Vinyl Coated Wire Rope,Wire Cable,Turnbuckle and Hooks Outdoor Light Guide Wire Kits
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product Name:String Light Suspension Kit
-Material:Stainless Steel
-Dimensions:5.91 x 3.94 x 0.79 inches
-Weight:2.2 pounds
-Assembled Height:0.79 inches
-Assembled Length:5.91 inches
-Assembled Width:3.94 inches
-Fixture Features:Shock and vibration resistant
-Shade Material:304 Stainless Steel
-Light Direction:Outdoor Light Guide Wire
-Color:Silver
-Application:Patio, pavilion, deck, garden, cafe, or being applied to a landscape chandelier lighting.
-Usage:Hanging string lights, globe lights and curtain lanterns. Hanging photo frames, dry clothes and facilities for sunbathe at day.
-Packaging:Carton or as per customer's requirements
-Special specifications can also be produced according to drawing and sample.
Detail Information

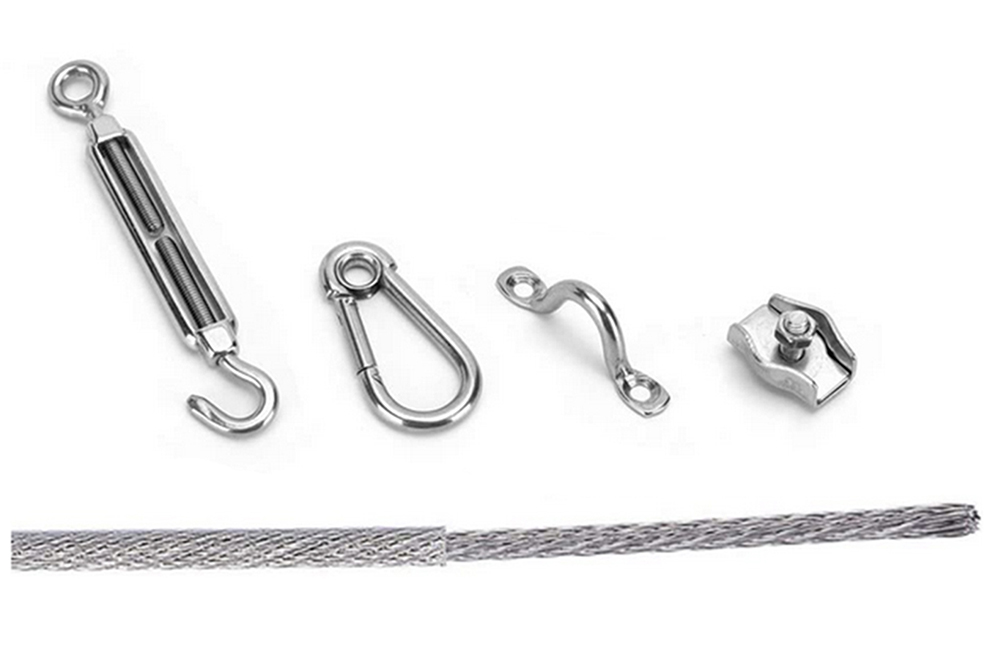

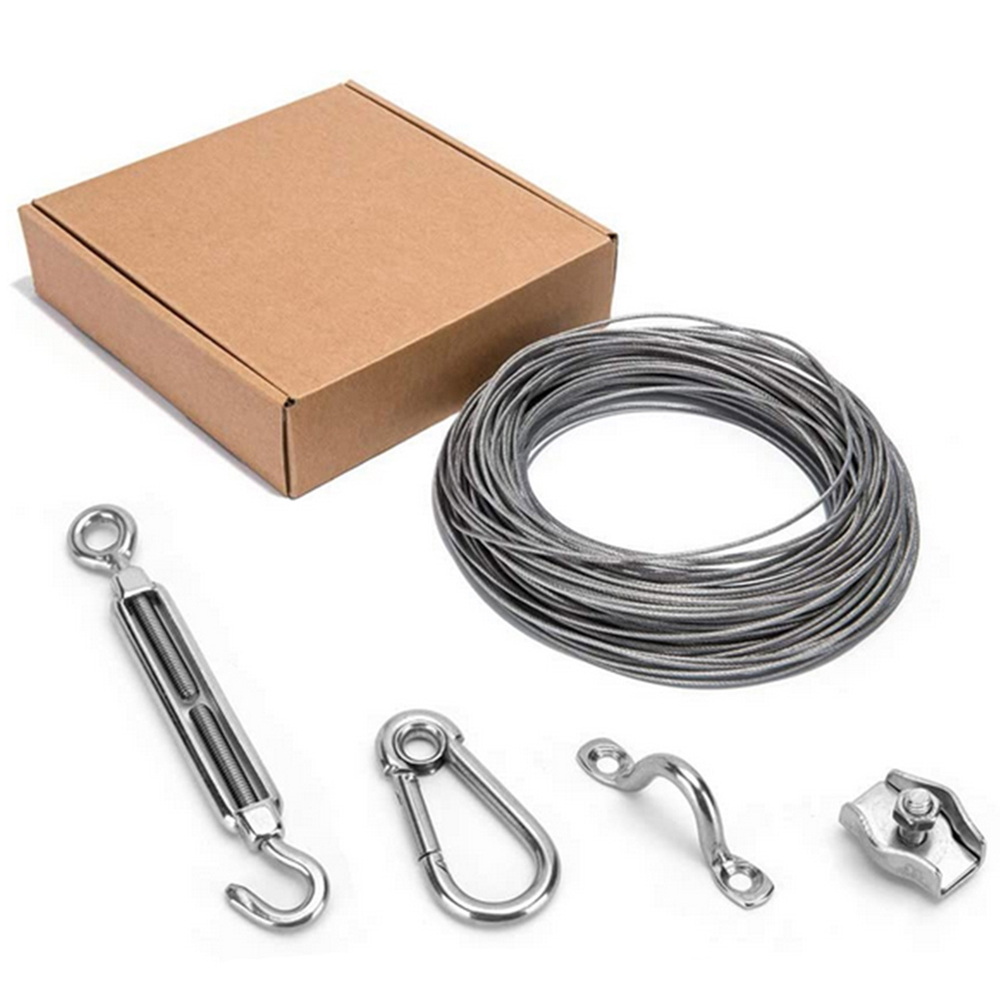

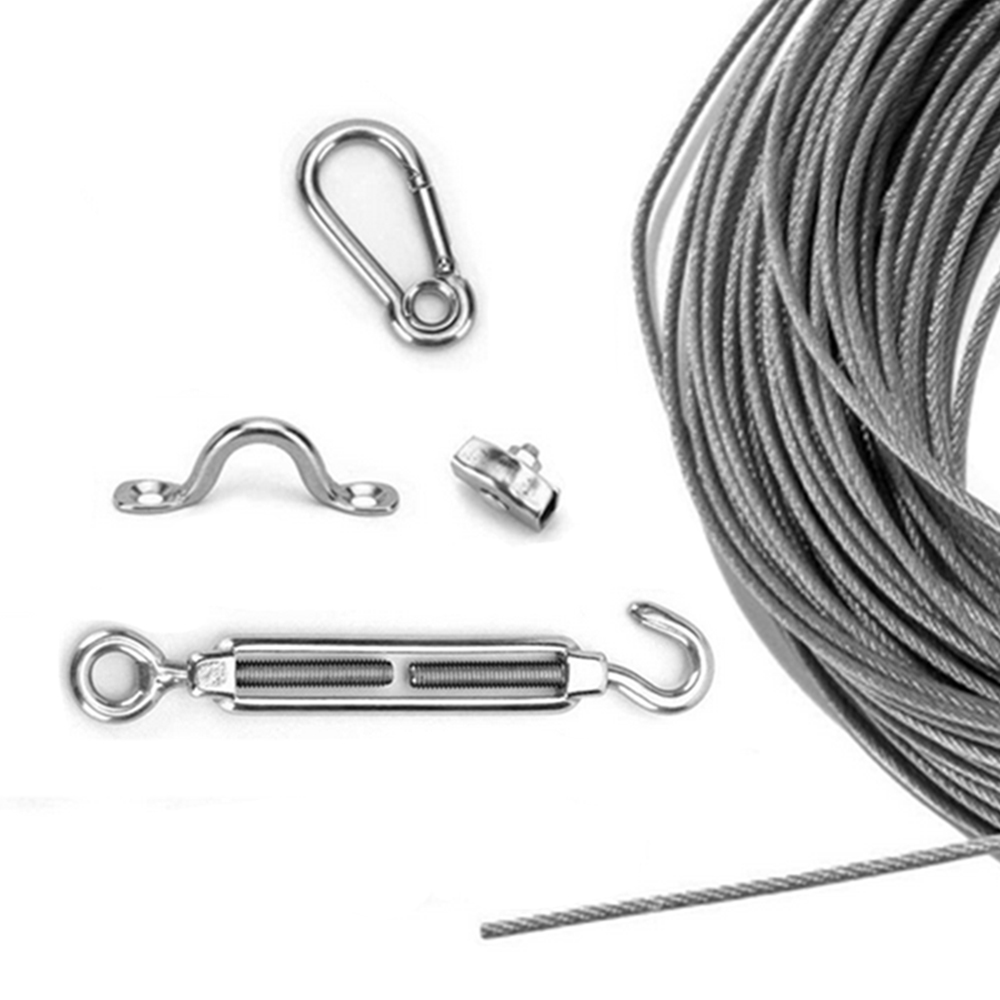

Kit
-Wire Rope length:PVC-Coated 304 Stainless Steel Cable

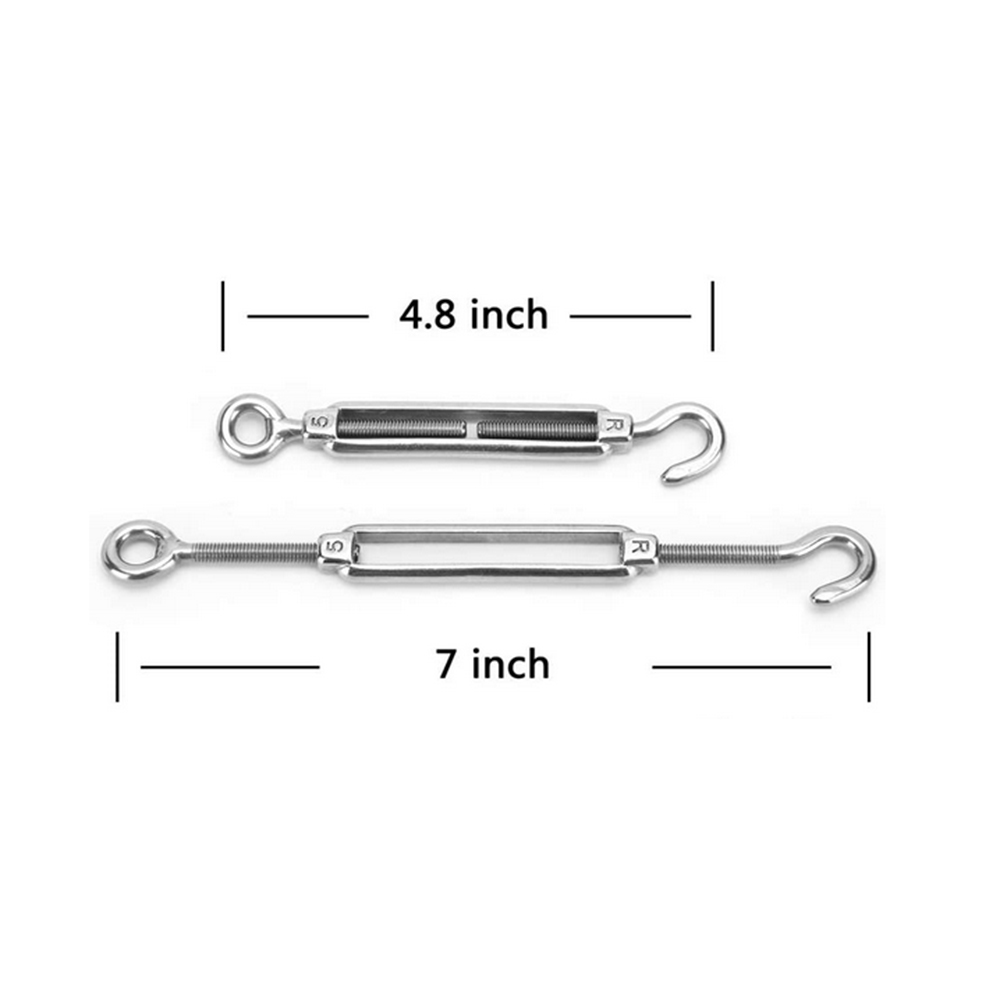

-Turnbuckle: 304 Stainless Steel,M5

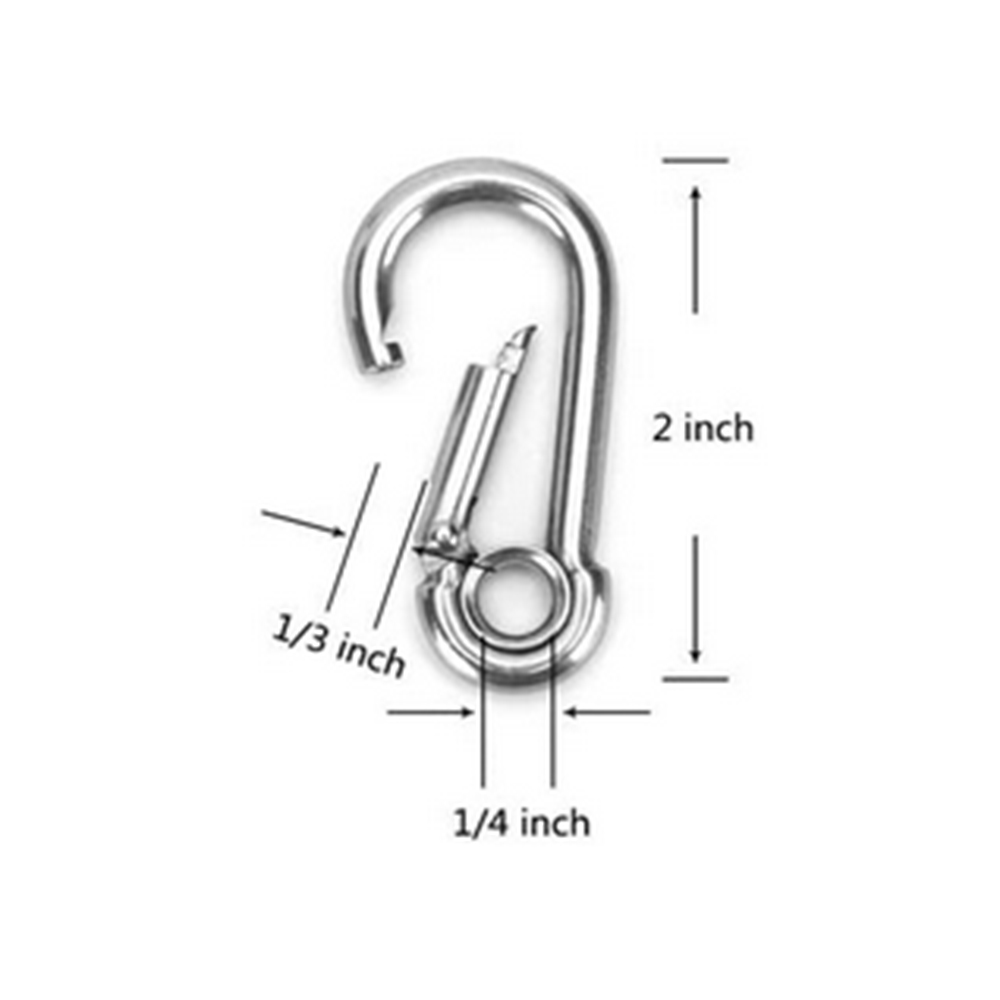

-Snap Hook : 304 Stainless Steel,M5

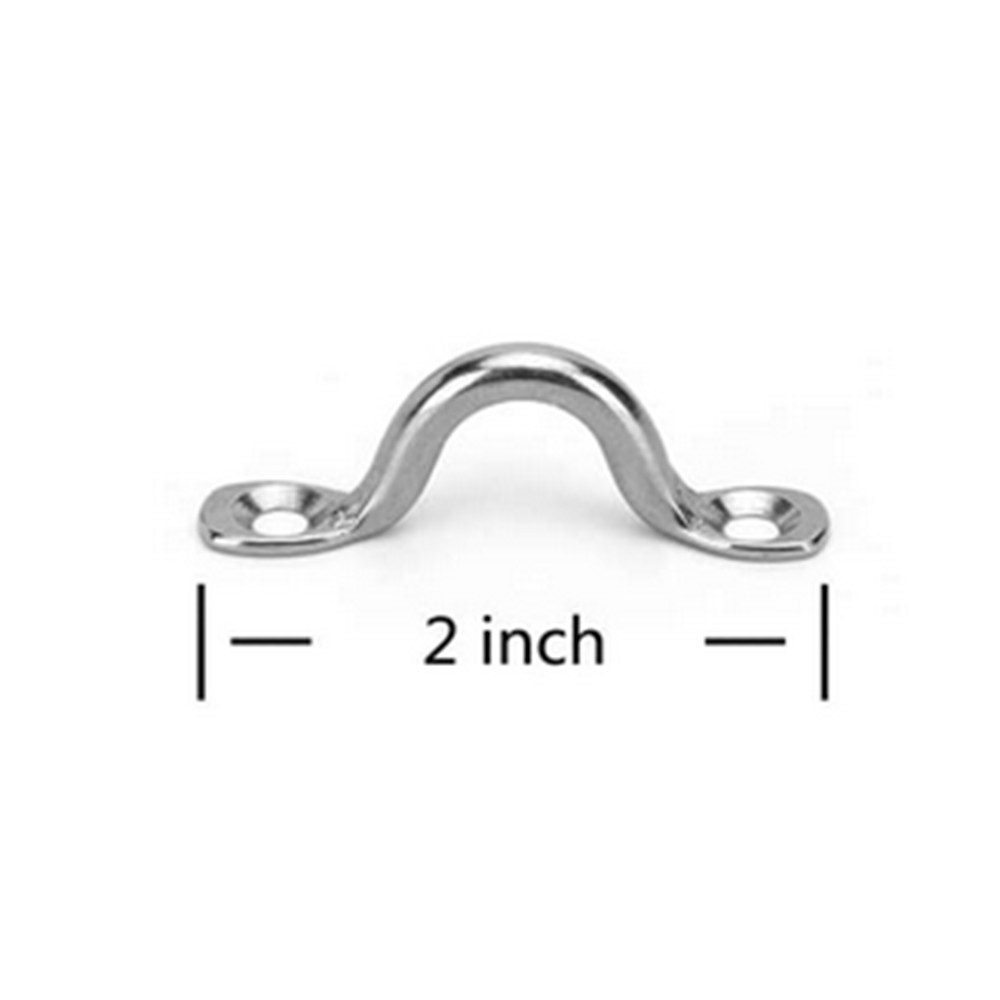

-Hump Screws : 304 Stainless Steel,M5
-Rope Clamp: 304 Stainless Steel,M5

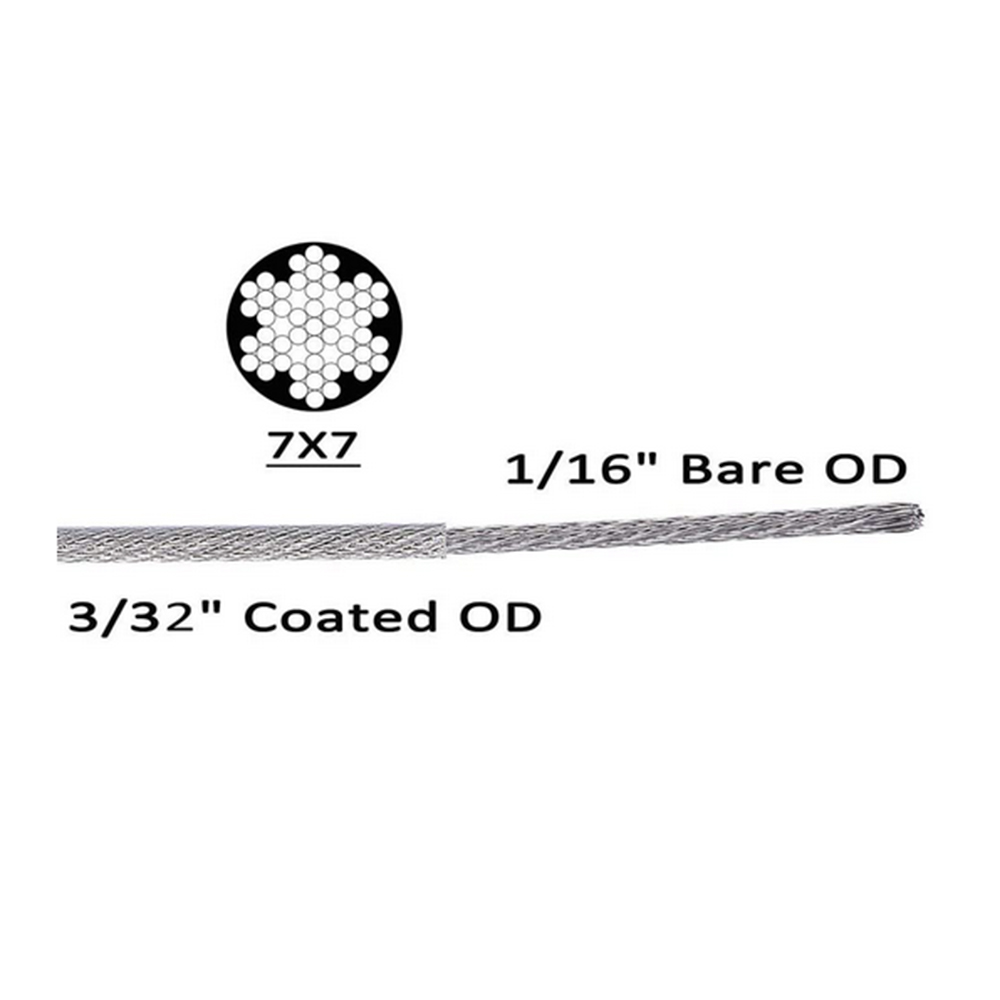

Wire Rope:150fts transparent PVC stainless steel cable,480 Ibs breaking strength,plastic coating Design,insulated,waterproof and Anti dirty,cable bare outer diameter is 1/16", coated outer diameter is 3/32",7x7.304 wire rope cable can be easily trimmed to any desired length
Feature:
-Easy to install: This string light suspension kit is made of stainless steel-304，Each part is connected by thread. The accessories are very compact and easy to install. When you do not need it, it is easy to put it away
-Sturdy: Once the cable is pulled tightly, it is sturdy enough to hang heavy duty string lights in large open areas, preventing sagging of commercial string lights

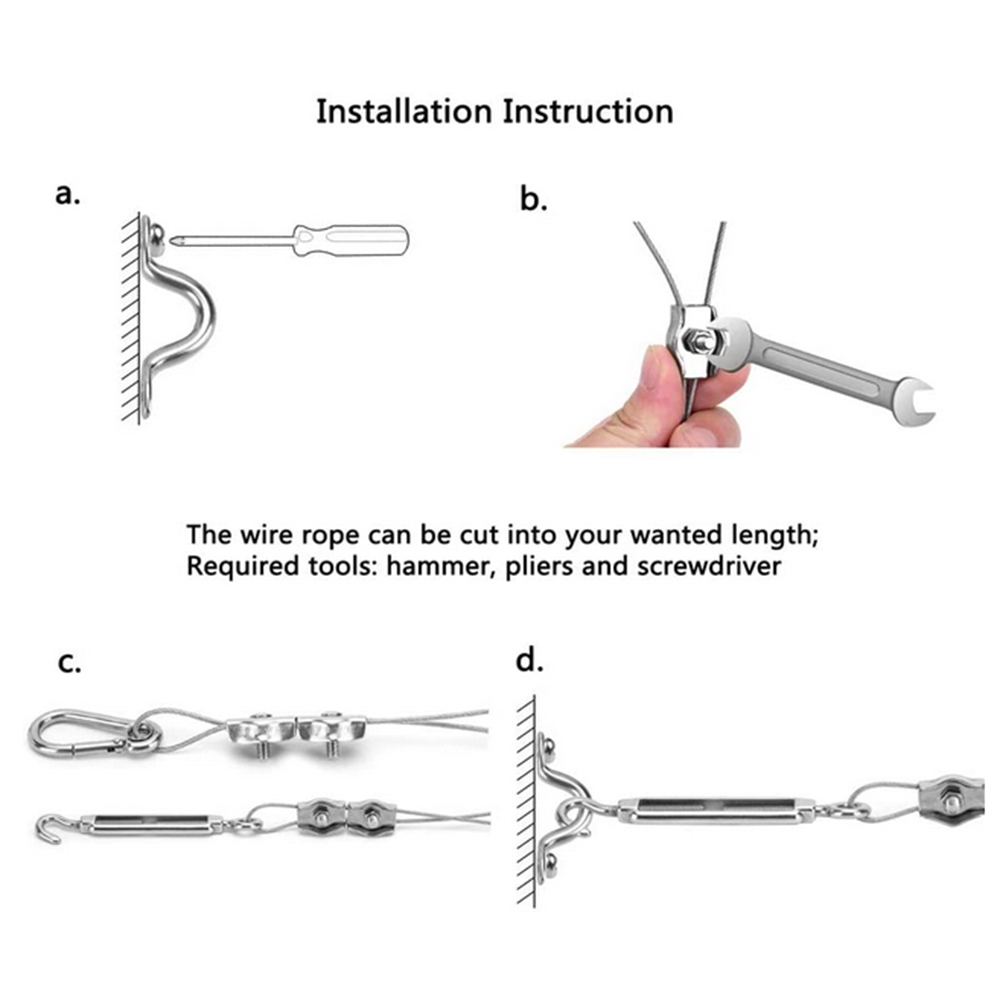

Instructions for use
-Firstly, fix the hump screws with a cross screw pen
-Second, two ways of fixing wire rope:
1.Insert the wire rope into the snap hook, fix the steel wire by 2 single clamps and use a small wrench to tighten the screw, loosen the snap hook to the maximum, adjust the snap hook according to the tightness of the wire rope
2.Insert the wire rope into the turnbuckle, fix the steel wire by 2 single clamps
Finally, hang the fixed wire rope by the hump screw.
Warm Tips: Can not be used to hang overweight outdoor items, and you need to tighten the screws enough when you install it.
