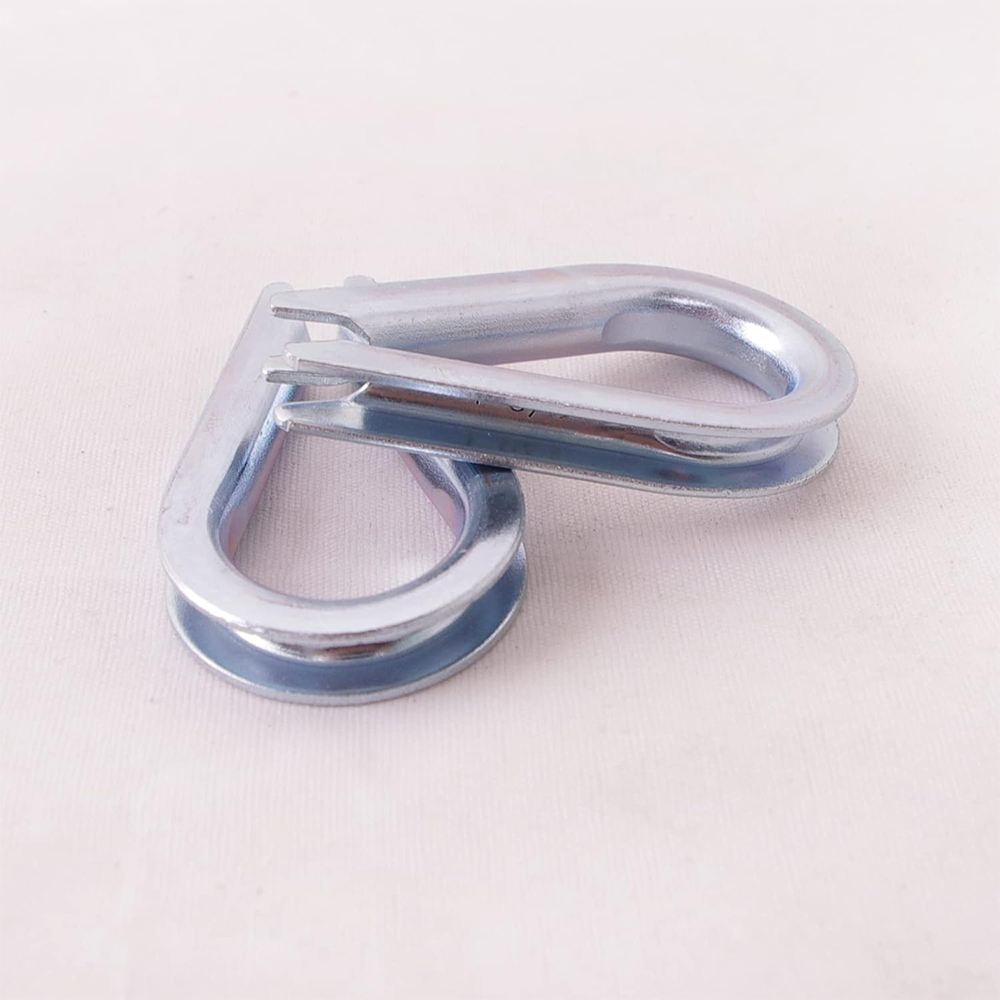

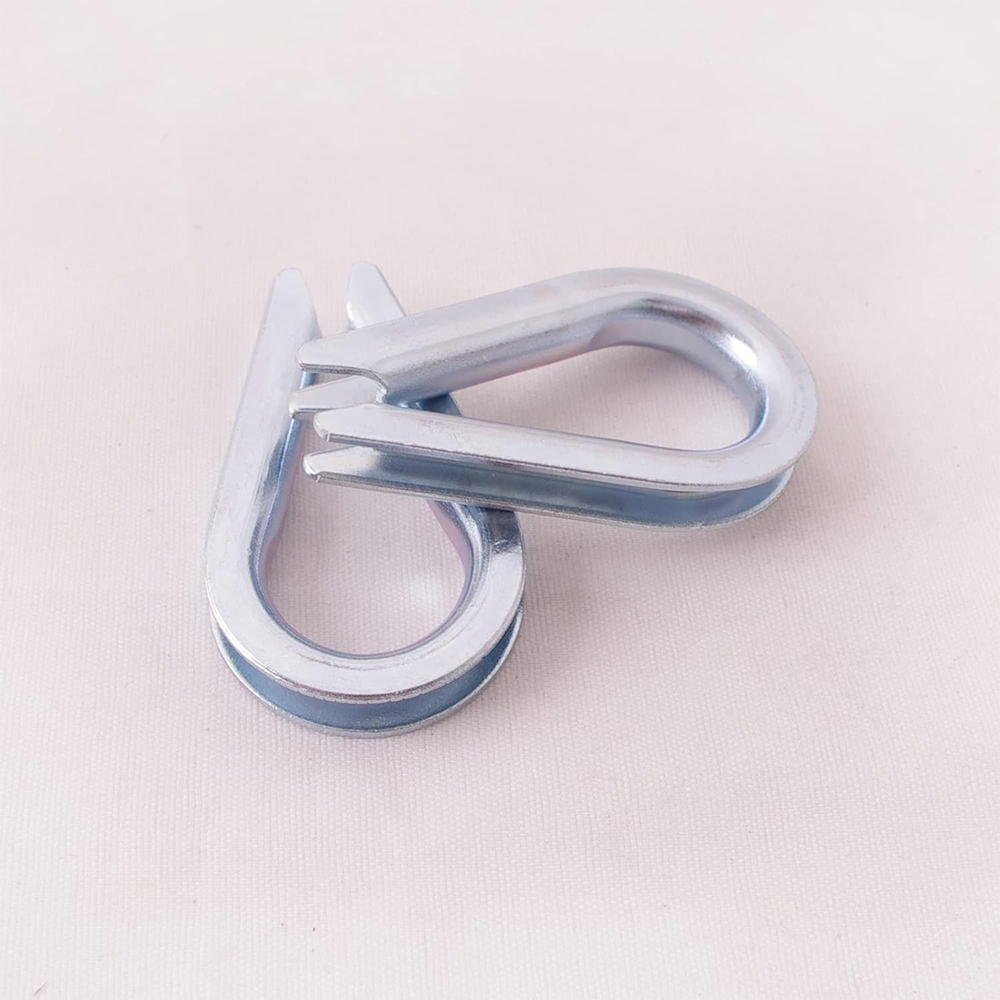

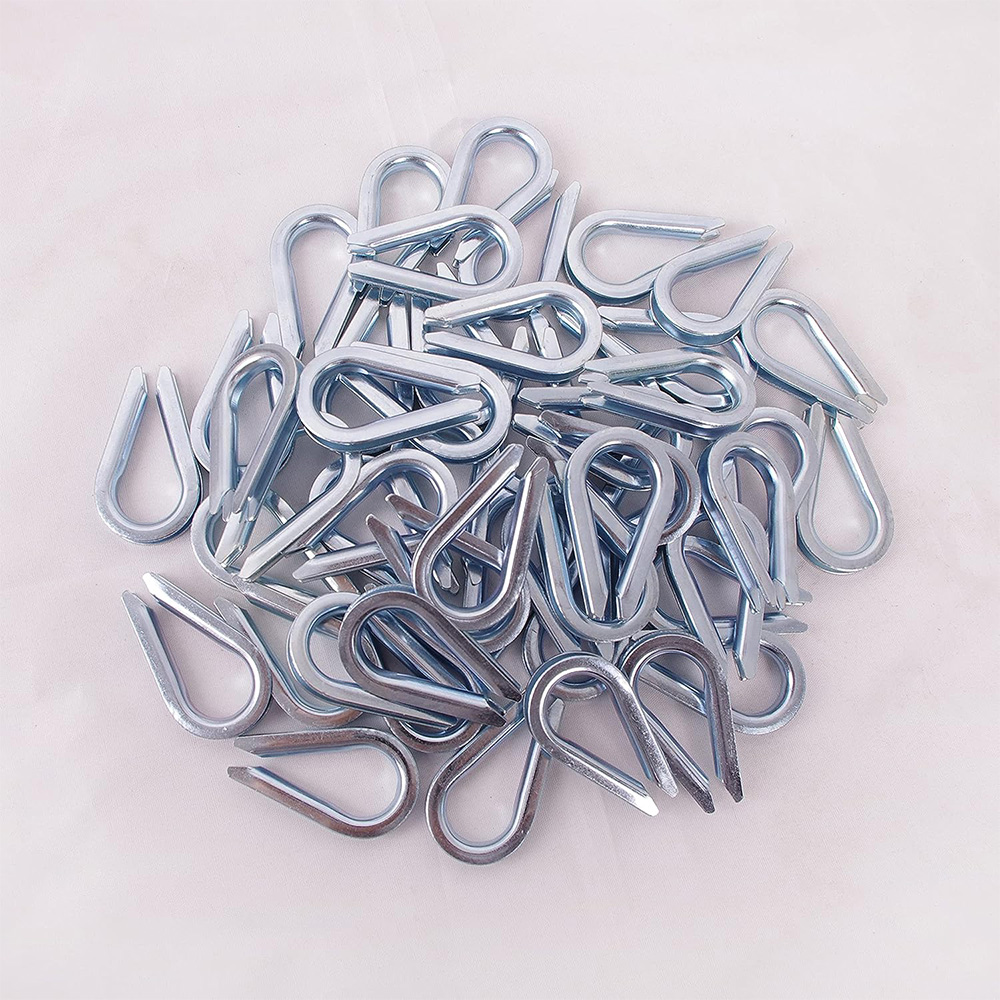

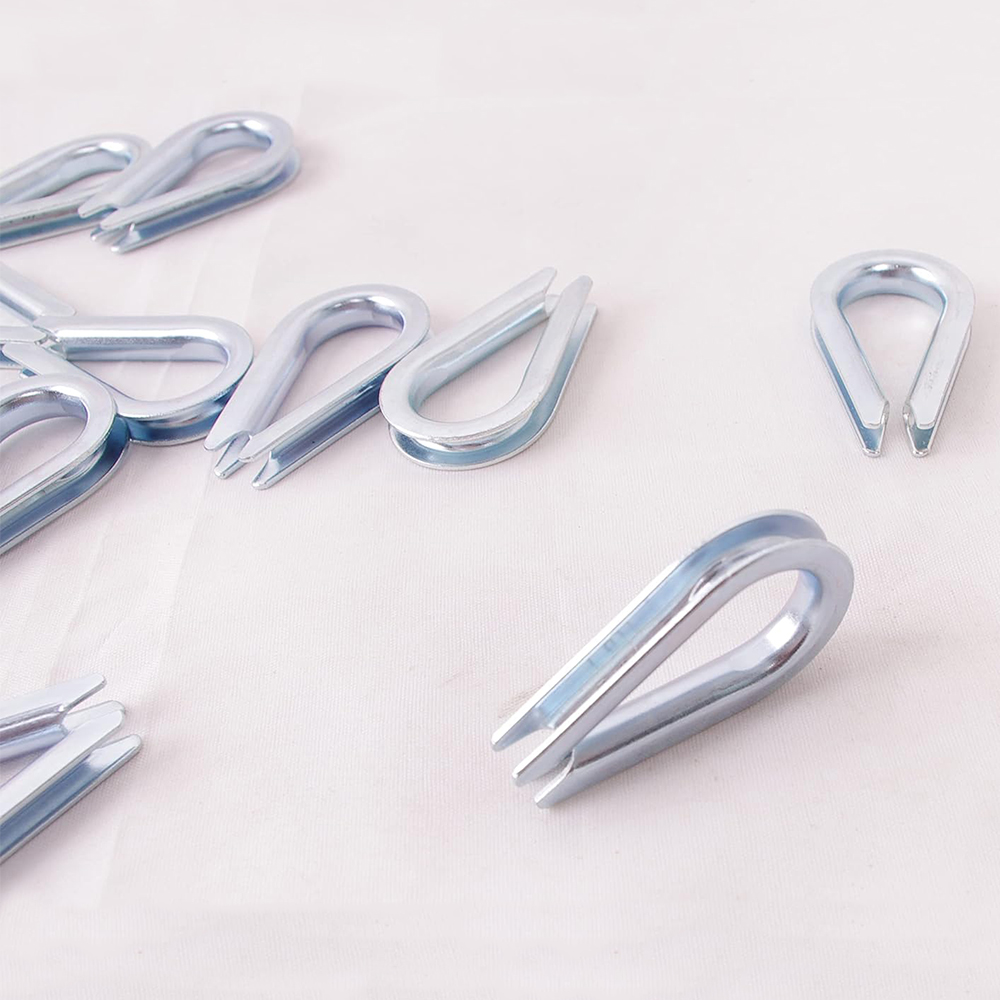

1/8" Wire Rope Thimble Carbon Steel Cable Thimble Galvanized Thimble Rigging
-Wire Rope Thimble Material Carbon Steel. Strong to hold!
-Wire Rope Dia. 1/8".
-Can use on wedding,farmer and Wire Rope Thimble for anything that require strong cable.
-Suitable for anything that require strong cable
-Economical solution for fixing and transporting general purpose cable
Detail Information

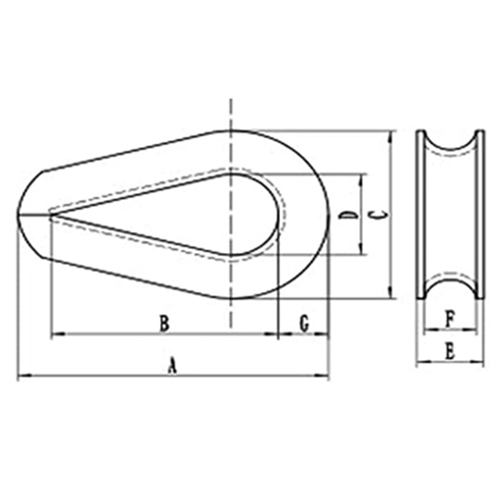

| SIZE(in) | A(in) | B(in) | C(in) | D(in) | E(in) | F(in) | G(in) |
| 1/8 | 1.92 | 1.36 | 1.10 | 0.73 | 0.28 | 0.17 | 0.23 |
| 1/2 | 2.66 | 1.99 | 1.69 | 1.14 | 0.69 | 0.45 | 0.29 |
-Material：Stainless Steel 316, 304 or Carbon Steel
-Surface Finish: Highly Polished or hot dip galvanized or electro galvanized
-Standards:BS464 Type,DIN6899A Type,DIN6899B Type,DIN3091 Type,Italian Type,US G411 and G414 Type,European Type, Commercial Type,Tube Type,Ring Type,Standard or Nonstandard Type etc.
-Advantage:Type 316 stainless steel has the best corrosion resistance among standard stainless steels. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion.
-Used:These can be used for a variety of applications.Sail boats and yachts, cable railing, and for shade sails.
Other related products:
Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.
Galvanized Rigging Hardware includes shackles, turnbuckles, wire rope clips, thimbles, and hooks, all made from high-strength steel with hot-dip galvanization for superior corrosion resistance. These components are essential for lifting, securing, and load control applications across construction, marine, transportation, and industrial sectors. The galvanized coating ensures long service life in harsh outdoor or marine environments. Features include high tensile strength, rust protection, reliable load-bearing performance, and compatibility with wire ropes and chains, making them ideal for both heavy-duty and general rigging operations.
