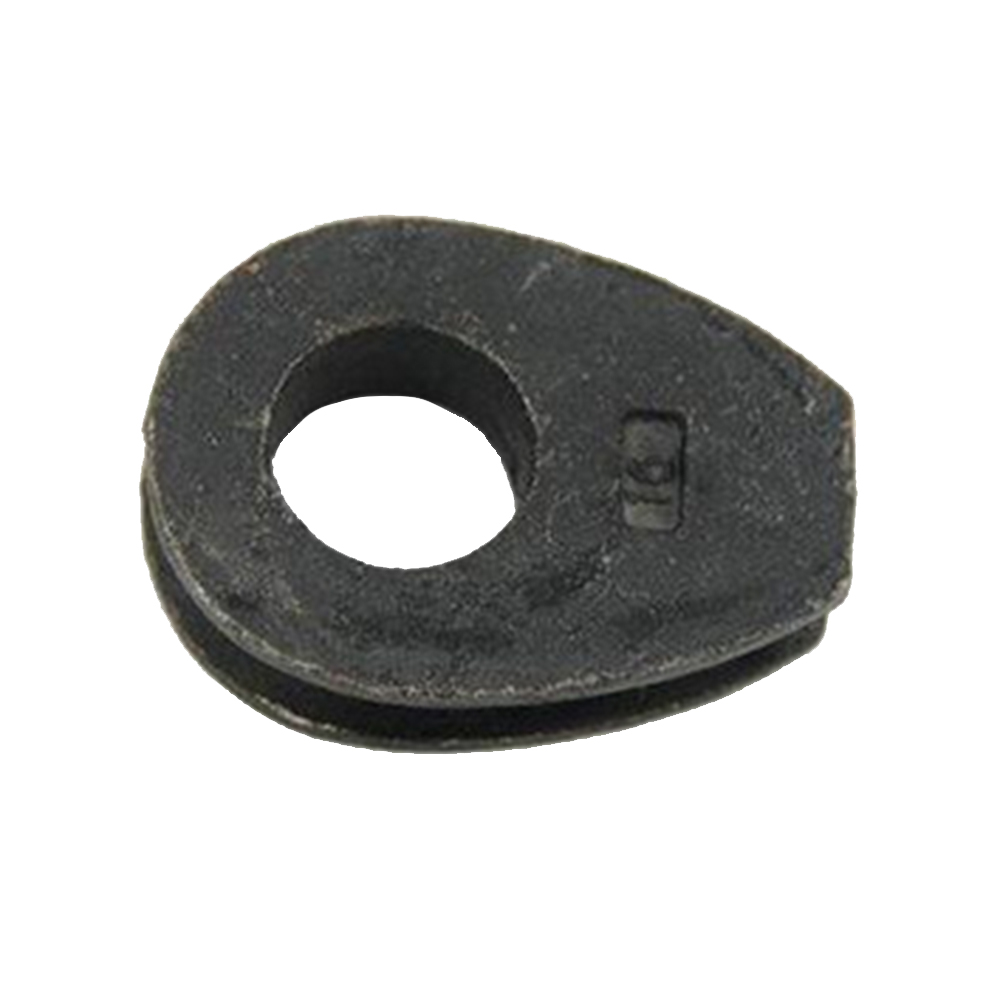

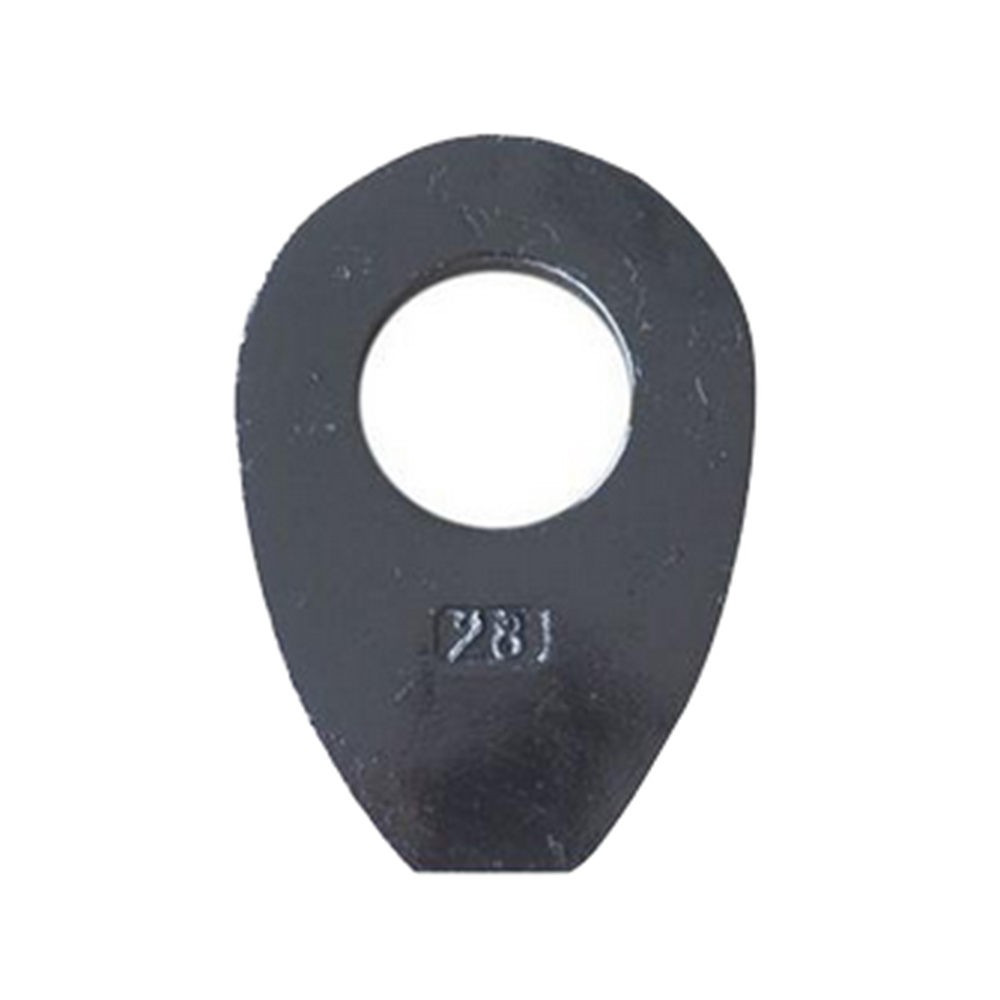

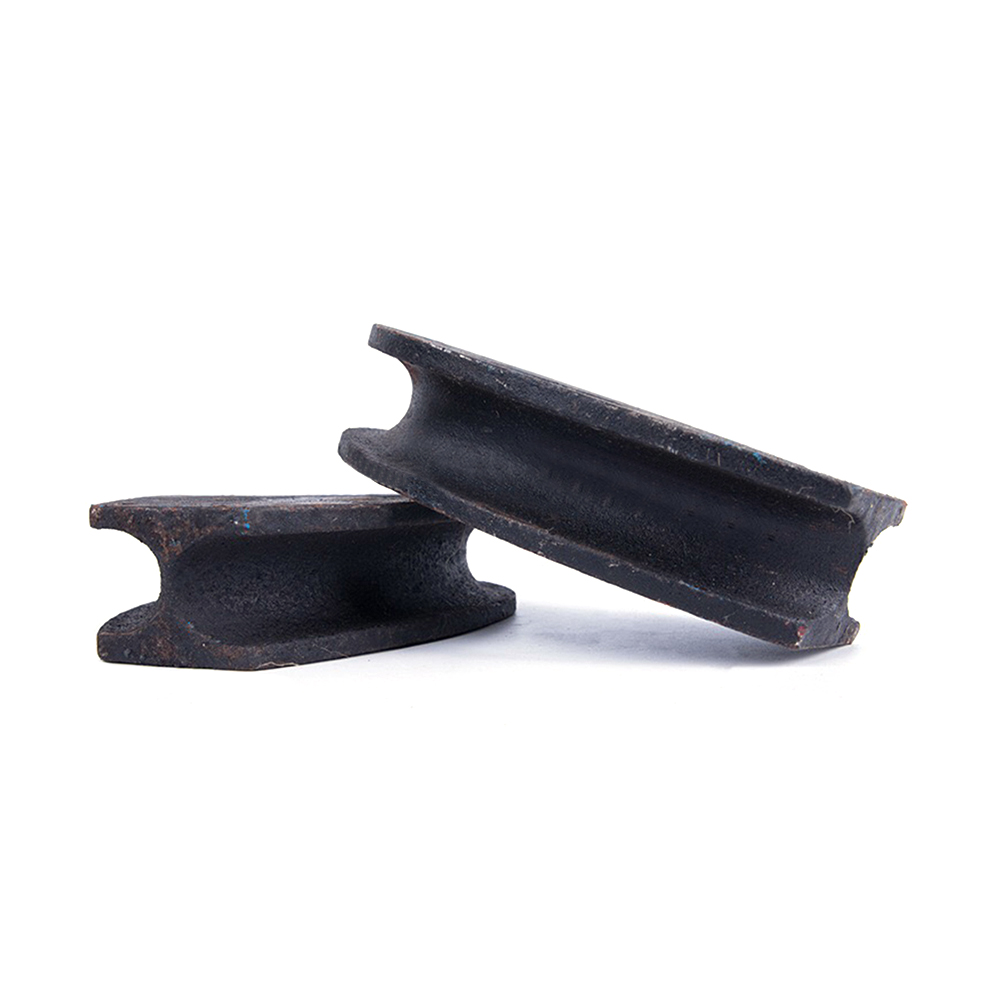

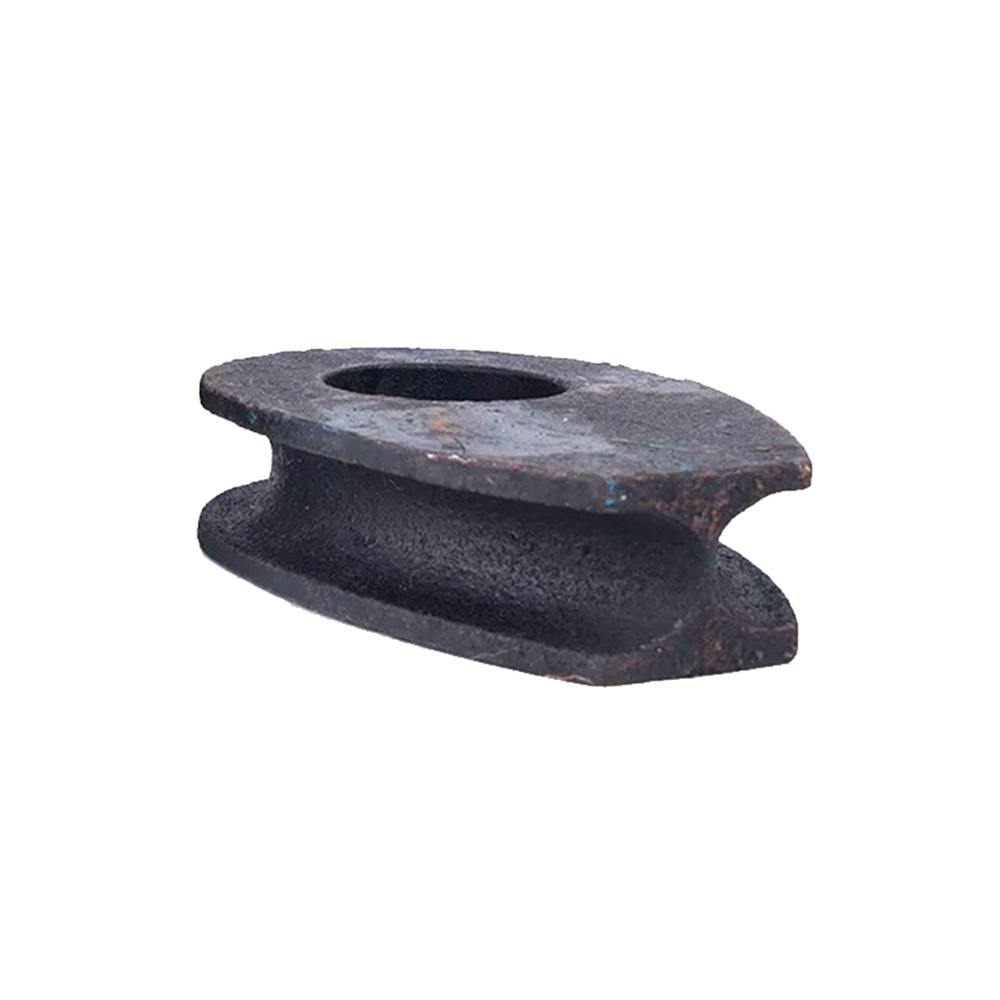

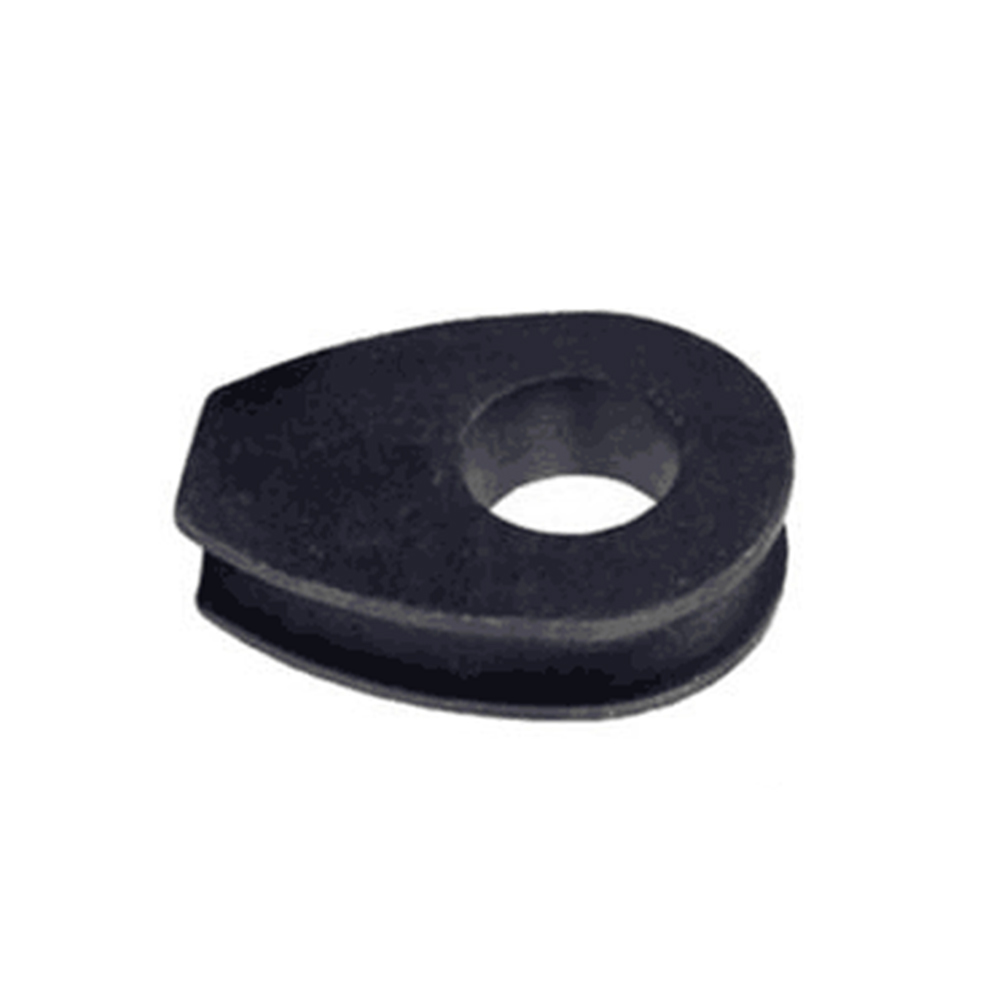

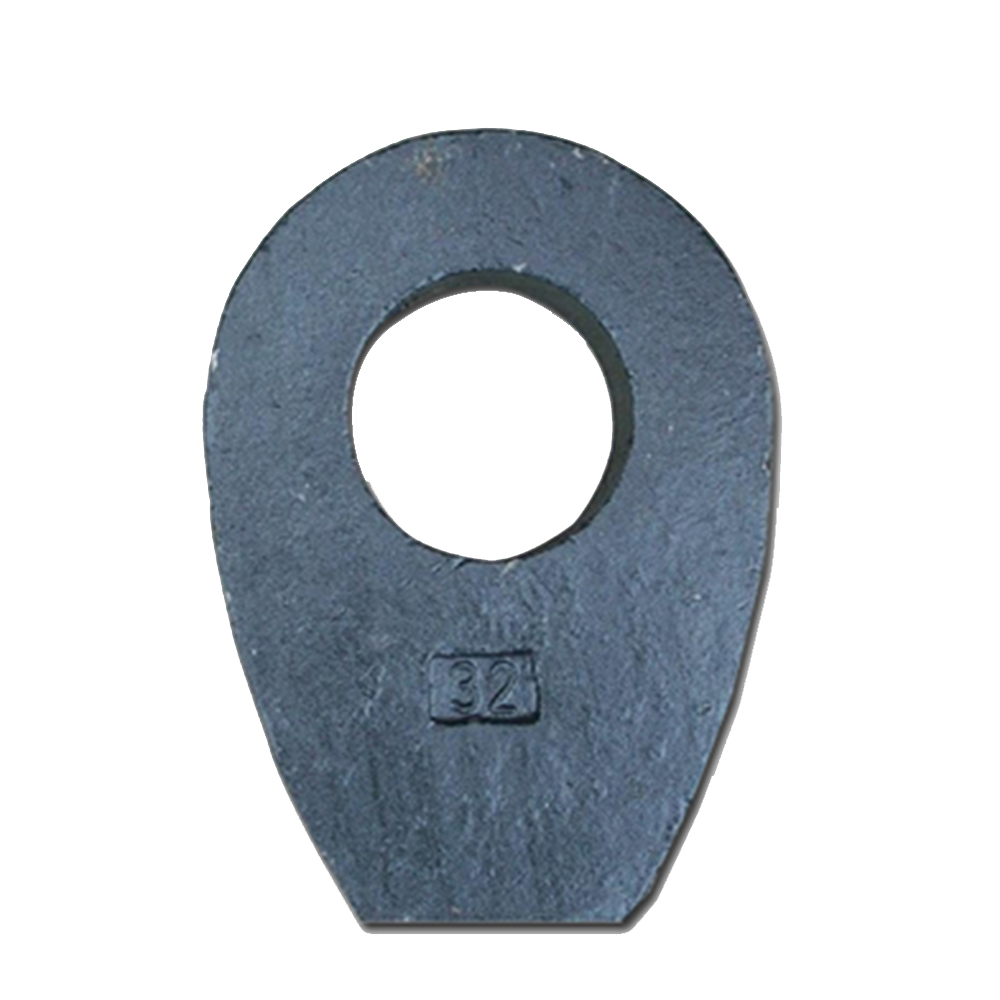

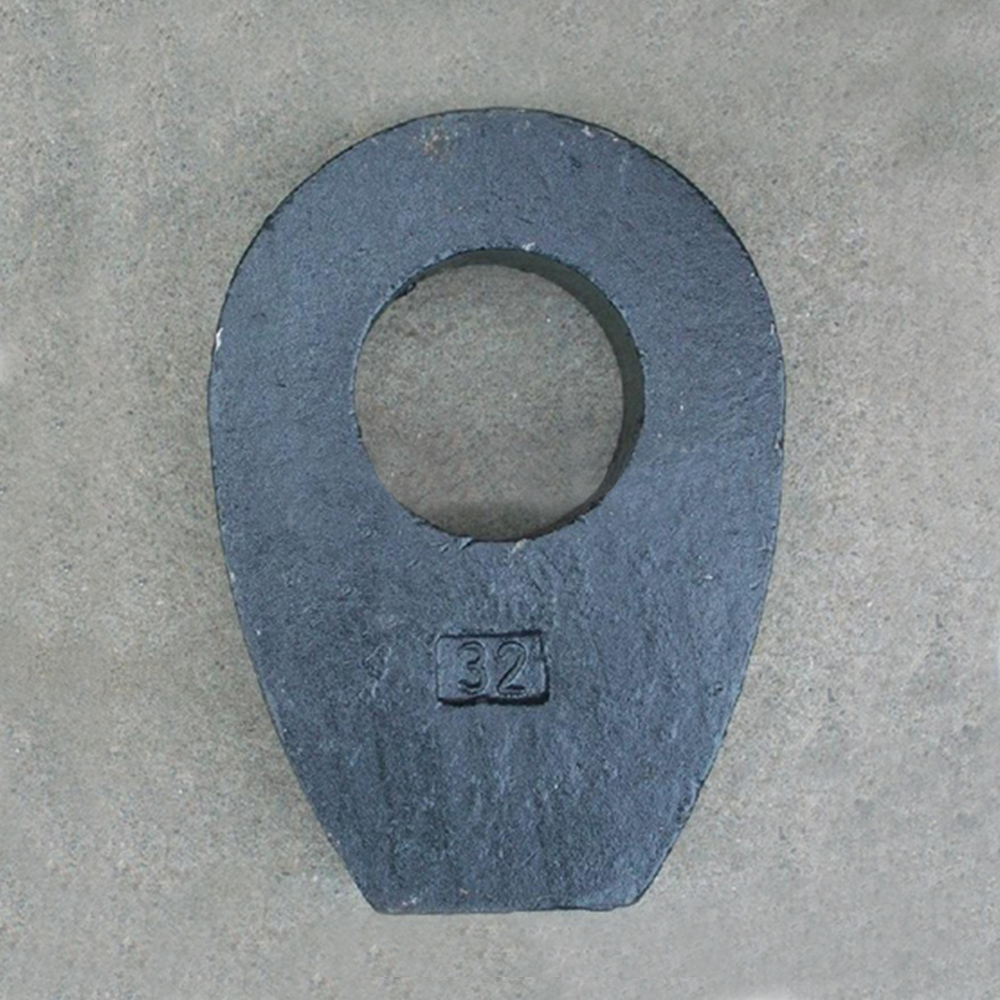

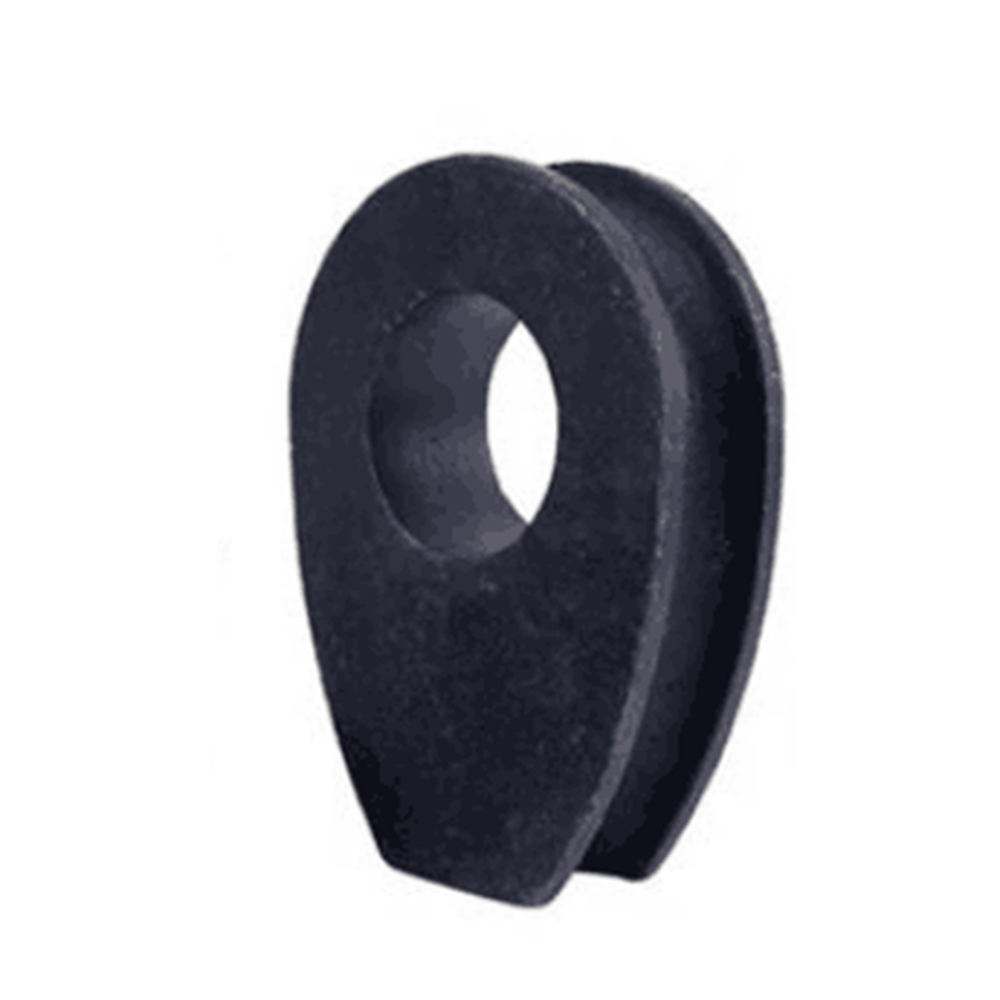

Din3091 Steel Wire Rope Thimble Casting Solid Thimble Heavy Duty Galvanized Thimble Rigging
-Place of Origin:China (Mainland)
-Brand Name:CHONGHONG
-Product name:Solid Timble
-Certificate:ISO9001/ISO14001
-Material:Alloy Steel
-Size:8mm-48mm
-Surface Treatment:Electro Galvanized,Hot Dipped Galvanized
-Also Available in Carbon steel,Stainless steel 304 or 316,High polished, Mirror Polished,Color Painted, Self colored or other etc.
-Color:Black
-Technology:Forging Heating
-Usage:Wire Rope Fittings
-Packaging:Cartons, bags or as per customer's requirements
Detail Information

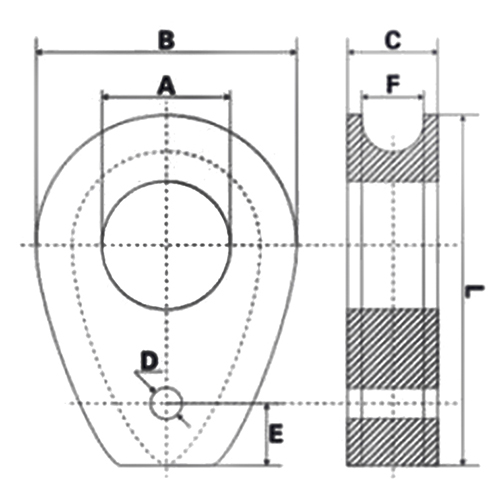

| Dimensions | ||||||||
| Size | F | C | A | B | L | D | E | W.II |
| mm | mm | mm | mm | mm | mm | mm | kg | |
| 8 | 8.6 | 14 | 20 | 40 | 56 | 5 | 20 | 0.08 |
| 10 | 10.8 | 17 | 25 | 50 | 70 | 5 | 20 | 0.17 |
| 12 | 12.9 | 21 | 30 | 60 | 84 | 5 | 20 | 0.32 |
| 14 | 15.1 | 24 | 35 | 70 | 98 | 5 | 20 | 0.5 |
| 16 | 17.2 | 28 | 40 | 80 | 112 | 5 | 20 | 0.78 |
| 18 | 19.4 | 31 | 45 | 90 | 126 | 5 | 20 | 1.14 |
| 20 | 21.5 | 35 | 50 | 100 | 140 | 10 | 30 | 1.41 |
| 22 | 23.7 | 38 | 55 | 110 | 154 | 10 | 30 | 1.96 |
| 24 | 25.8 | 42 | 60 | 120 | 168 | 10 | 30 | 2.41 |
| 26 | 28 | 45 | 64 | 130 | 182 | 10 | 30 | 3.46 |
| 28 | 30.1 | 49 | 70 | 140 | 196 | 10 | 30 | 4.3 |
| 32 | 38.7 | 63 | 90 | 180 | 252 | 10 | 30 | 9.77 |
| 36 | 43 | 70 | 100 | 200 | 280 | 10 | 30 | 12.94 |
| 40 | 47.3 | 77 | 110 | 220 | 306 | 15 | 40 | 17.02 |
| 48 | 51.6 | 84 | 120 | 240 | 336 | 15 | 40 | 22.75 |
-Place of Origin:China (Mainland)
-Brand Name:CHONGHONG
-Product name:Solid Timble
-Certificate:ISO9001/ISO14001
-Material:Alloy Steel
-Size:8mm-48mm
-Surface Treatment:Electro Galvanized,Hot Dipped Galvanized
-Also Available in Carbon steel,Stainless steel 304 or 316,High polished, Mirror Polished,Color Painted, Self colored or other etc.
-Color:Black
-Technology:Forging Heating
-Usage:Wire Rope Fittings
-Packaging:Cartons, bags or as per customer's requirements
Related Type:BS464 Type,DIN6899A Type,DIN6899B Type,DIN3091 Type,Italian Type,US G411 and G414 Type,European Type, Commercial Type,Tube Type,Ring Type,Standard or Nonstandard Type etc.
Other related products:
Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.
Galvanized Rigging Hardware includes shackles, turnbuckles, wire rope clips, thimbles, and hooks, all made from high-strength steel with hot-dip galvanization for superior corrosion resistance. These components are essential for lifting, securing, and load control applications across construction, marine, transportation, and industrial sectors. The galvanized coating ensures long service life in harsh outdoor or marine environments. Features include high tensile strength, rust protection, reliable load-bearing performance, and compatibility with wire ropes and chains, making them ideal for both heavy-duty and general rigging operations.
