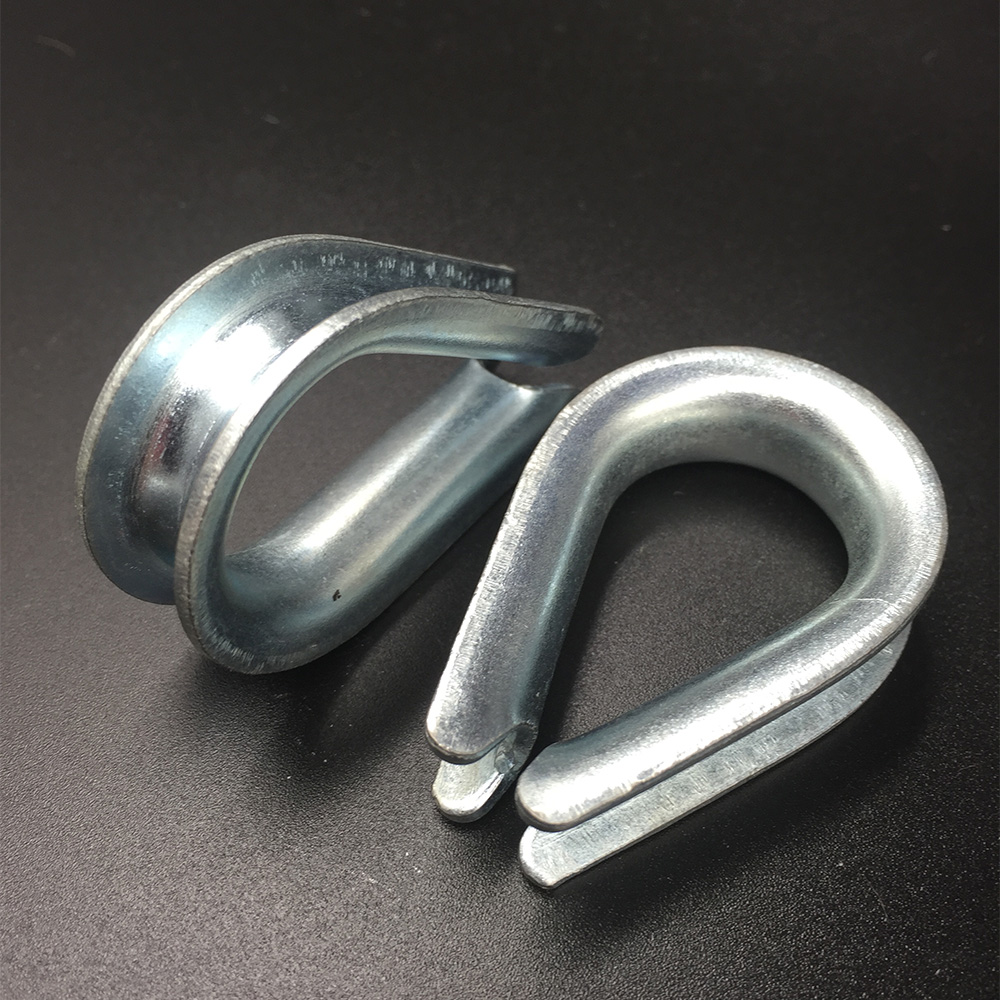

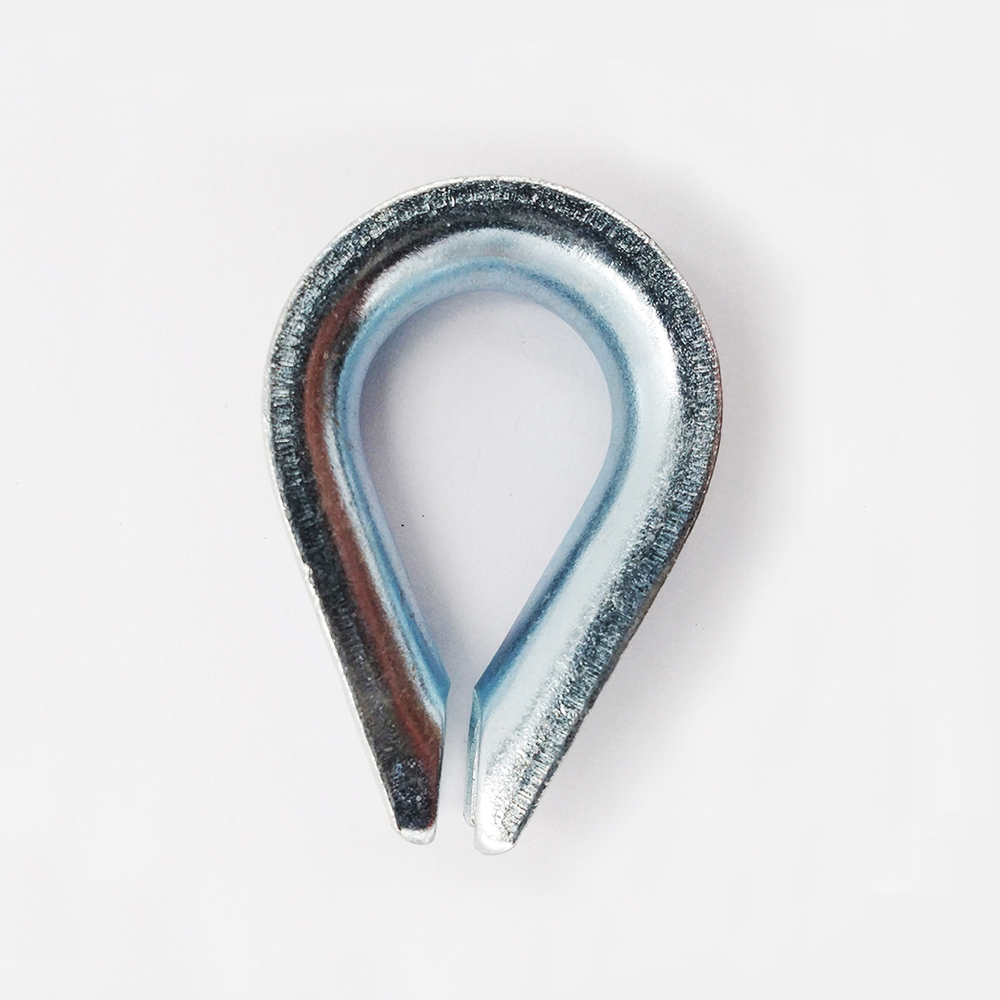

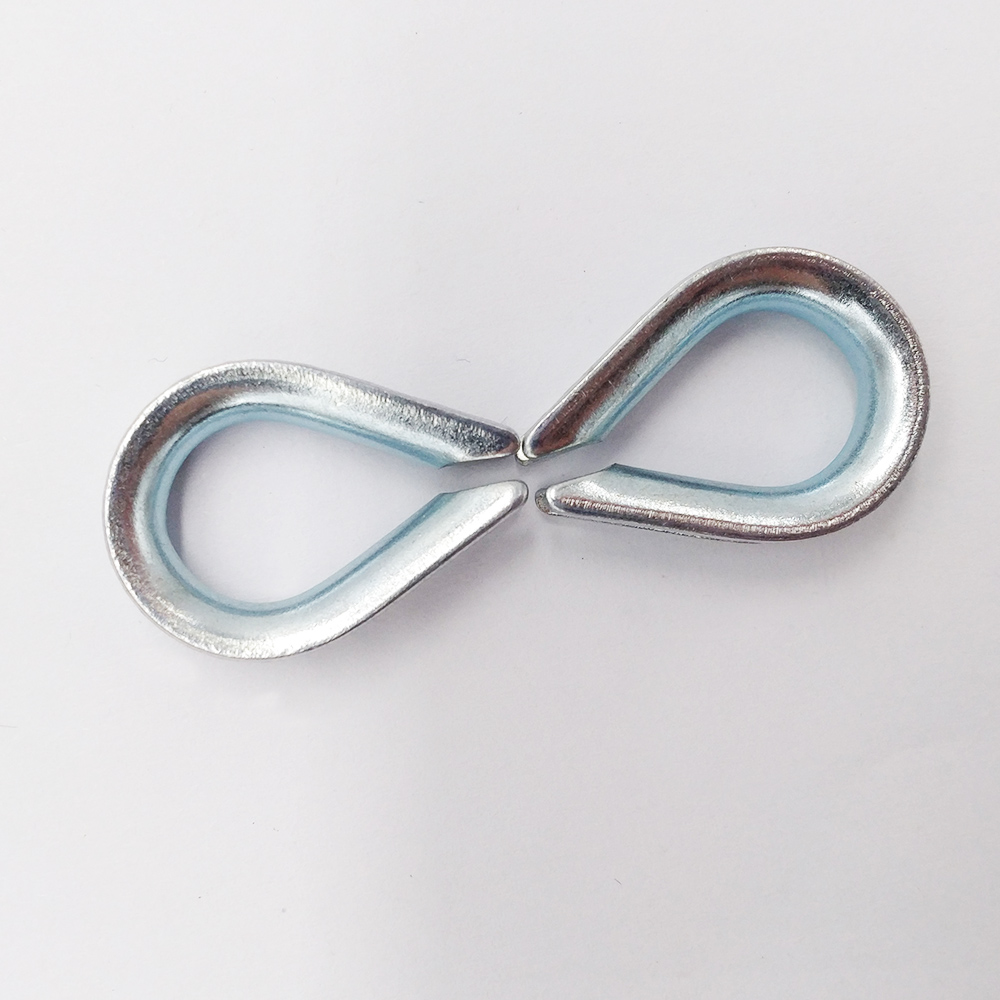

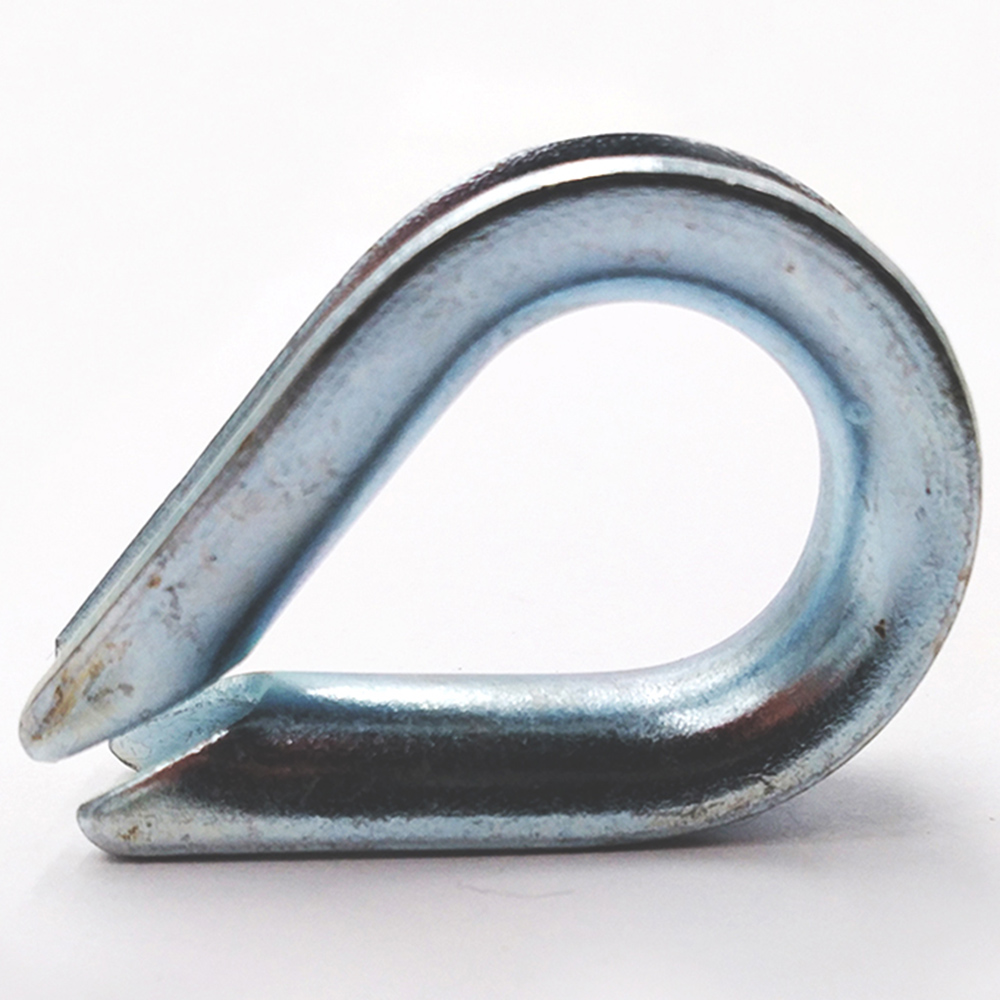

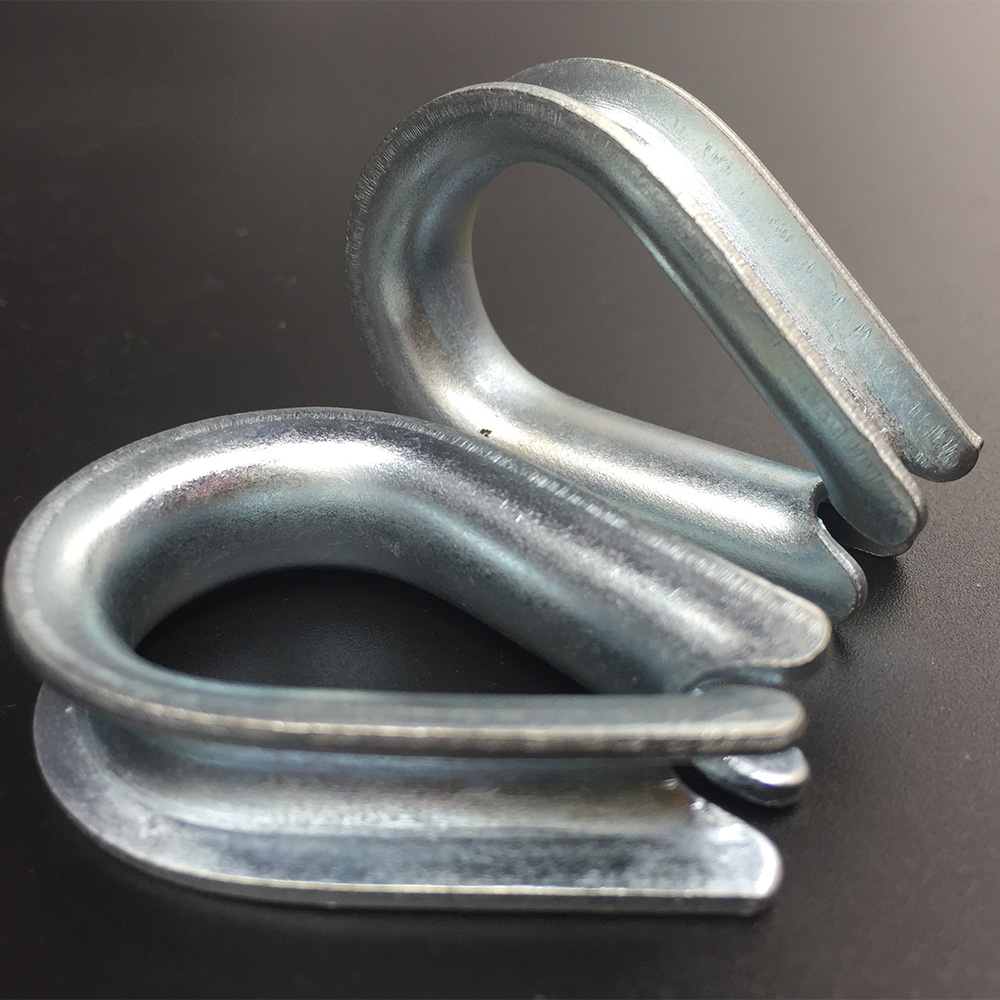

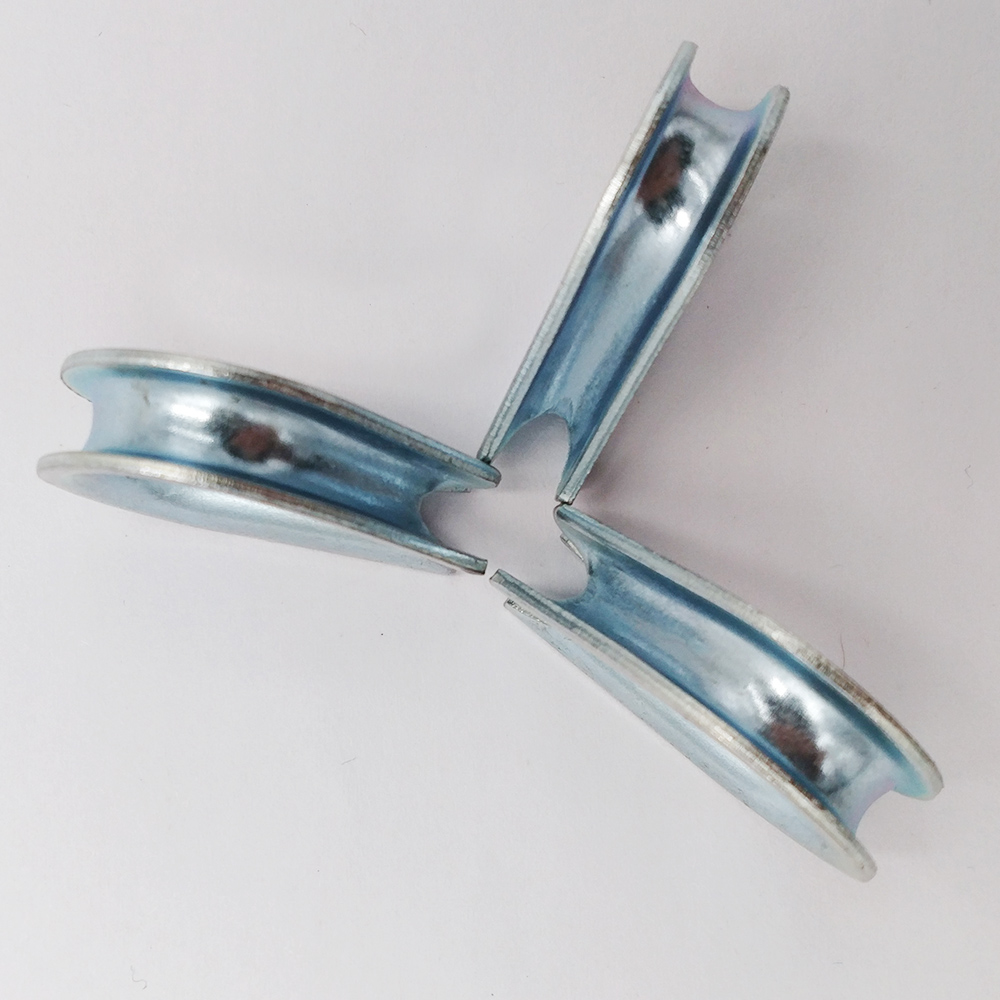

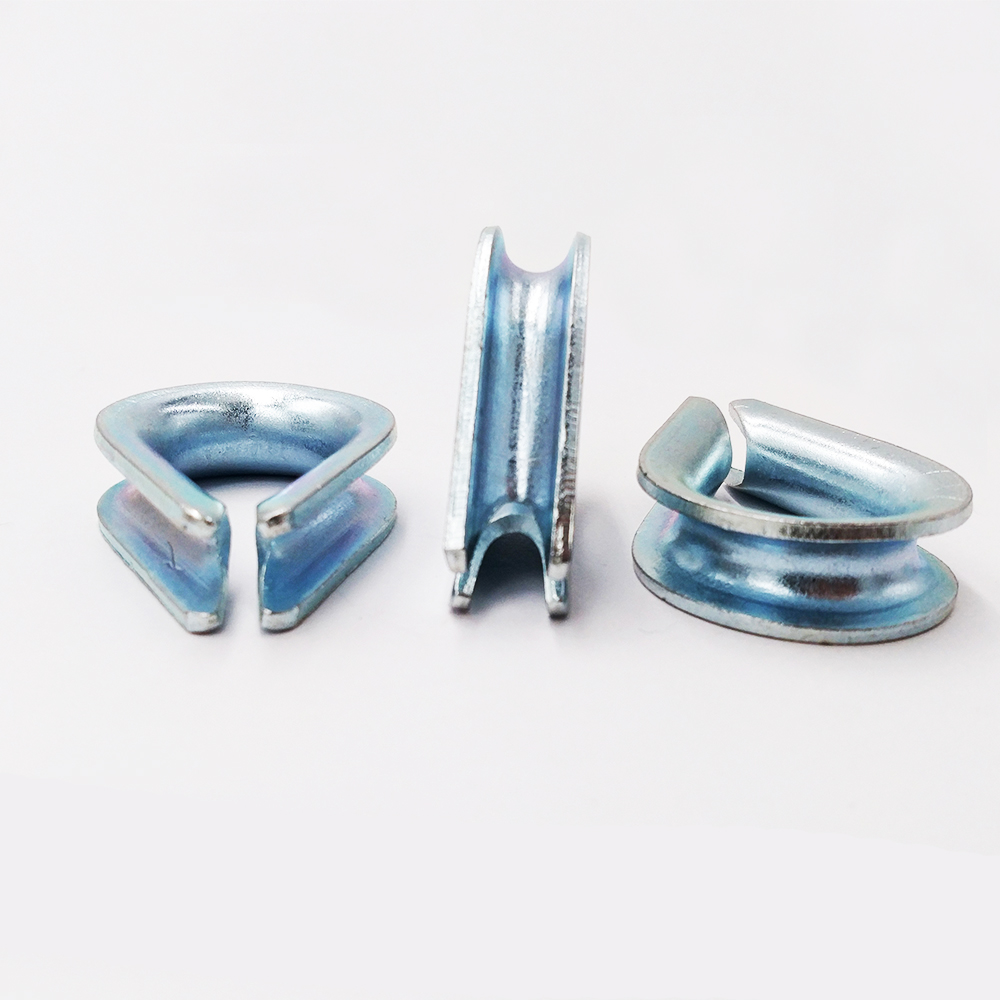

Rigging Hardware DIN6899B Thimbles Wire Rope Thimble Commercial Type Thimbles
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product Name:Wire Rope Thimble
-Standard:DIN6899B
-Materials: Carbon steel
-Size: 2.5-42mm
-Surface treatment:Galvanized
-Also Available in Stainless steel 304 or 316,High polished, Mirror Polished,Hot Dipped Galvanized, Electro Galvanized, Color Painted, Self colored or other etc.
-Application:Wire rope accessories
-Packaging:Polybag, carton or as per customer's requirements
-Special specifications can also be produced according to drawing and sample.

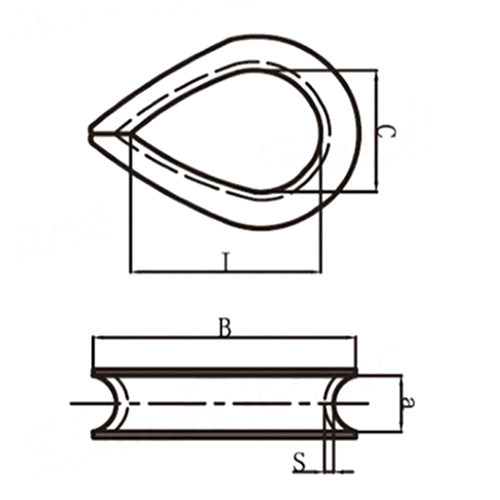

Detail Information
| Diameter rope (mm) | Dimensions(mm) | Weight 100 pcs (Ibs) | ||||
| Groove width | Overall length | Inside length | Inside width | Back thickness | ||
| a | B | I | C | S | ||
| 2.5 | 3 | 22 | 19 | 12 | 1.6 | 0.5 |
| 3.5 | 4 | 26 | 21 | 13 | 1.6 | 0.8 |
| 4 | 5 | 32 | 23 | 14 | 1.9 | 1 |
| 5 | 6 | 38 | 25 | 16 | 2.4 | 1.6 |
| 6 | 7 | 44 | 28 | 18 | 2.4 | 1.9 |
| 7 | 8 | 51 | 32 | 20 | 2.8 | 3 |
| 9 | 10 | 57 | 38 | 24 | 3.1 | 4.7 |
| 11 | 12 | 64 | 45 | 28 | 3.3 | 6.8 |
| 13 | 13 | 70 | 48 | 30 | 3.3 | 8 |
| 13 | 14 | 76 | 51 | 32 | 3.7 | 10 |
| 15 | 16 | 83 | 58 | 36 | 3.8 | 14.5 |
| 16 | 17 | 89 | 61 | 38 | 4.7 | 18 |
| 17 | 18 | 95 | 64 | 40 | 4.7 | 20 |
| 18 | 20 | 102 | 72 | 45 | 5.7 | 29 |
| 20 | 22 | 114 | 80 | 50 | 5.7 | 32 |
| 22 | 24 | 127 | 90 | 56 | 6.5 | 47 |
| 24 | 26 | 140 | 99 | 62 | 6.8 | 59 |
| 26 | 28 | 152 | 112 | 70 | 8 | 80 |
| 28 | 30 | 165 | 120 | 75 | 8 | 110 |
| 30 | 32 | 178 | 128 | 80 | 8 | 123 |
| 32 | 34 | 203 | 152 | 95 | 8.5 | 156 |
| 34 | 36 | 216 | 160 | 100 | 8.5 | 176 |
| 36 | 38 | 229 | 176 | 110 | 8.5 | 192 |
| 38 | 40 | 241 | 184 | 115 | 10.5 | 292 |
| 40 | 42 | 254 | 192 | 120 | 10.5 | 320 |
| 42 | 45 | 305 | 240 | 150 | 10.5 | 364 |
-Place of Origin:China
-Brand Name:CHONGHONG
-Certificate:ISO9001/ISO14001
-Product Name:Wire Rope Thimble
-Standard:DIN6899B
-Materials: Carbon steel
-Size: 2.5-42mm
-Surface treatment:Galvanized
-Also Available in Stainless steel 304 or 316,High polished, Mirror Polished,Hot Dipped Galvanized, Electro Galvanized, Color Painted, Self colored or other etc.
-Application:Wire rope accessories
-Packaging:Polybag, carton or as per customer's requirements
-Special specifications can also be produced according to drawing and sample.
Related Type:BS464 Type,DIN6899A Type,DIN6899B Type,DIN3091 Type,Italian Type,US G411 and G414 Type,European Type, Commercial Type,Tube Type,Ring Type,Standard or Nonstandard Type etc.
Other related products:
Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.
Galvanized Rigging Hardware includes shackles, turnbuckles, wire rope clips, thimbles, and hooks, all made from high-strength steel with hot-dip galvanization for superior corrosion resistance. These components are essential for lifting, securing, and load control applications across construction, marine, transportation, and industrial sectors. The galvanized coating ensures long service life in harsh outdoor or marine environments. Features include high tensile strength, rust protection, reliable load-bearing performance, and compatibility with wire ropes and chains, making them ideal for both heavy-duty and general rigging operations.
