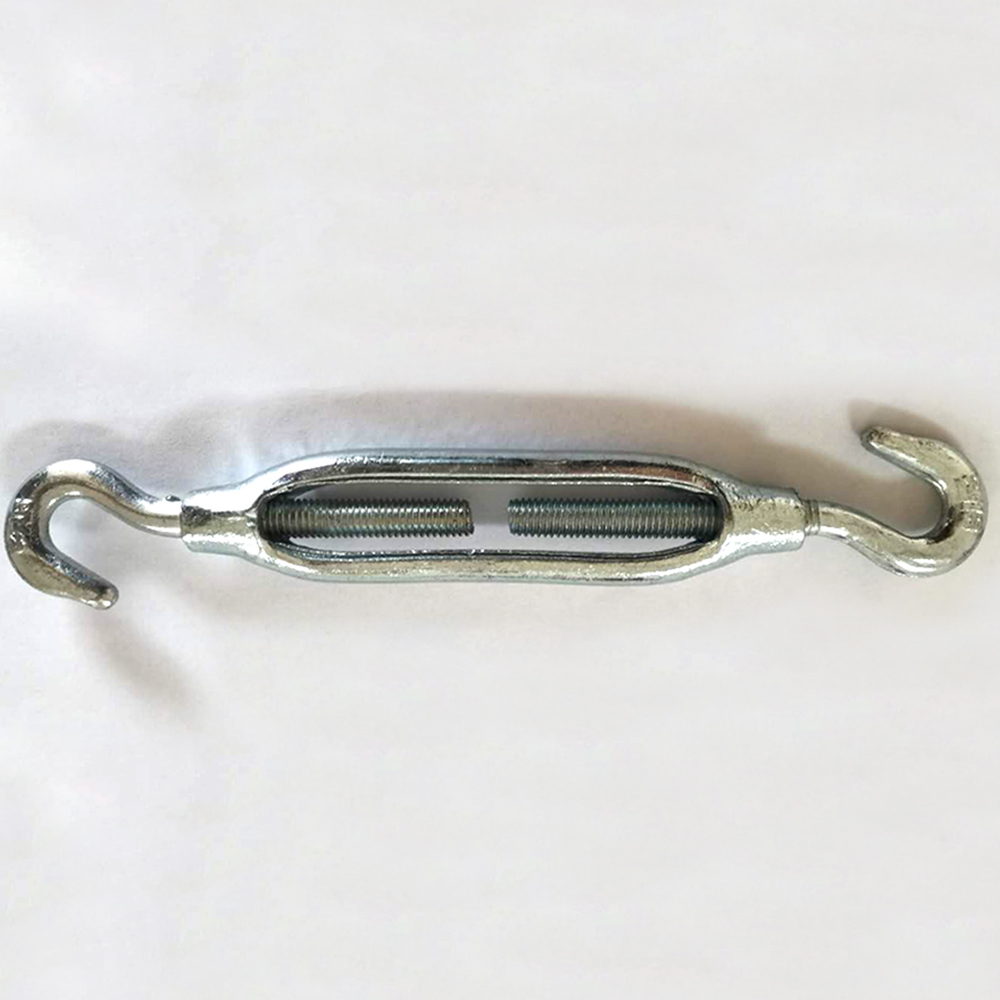

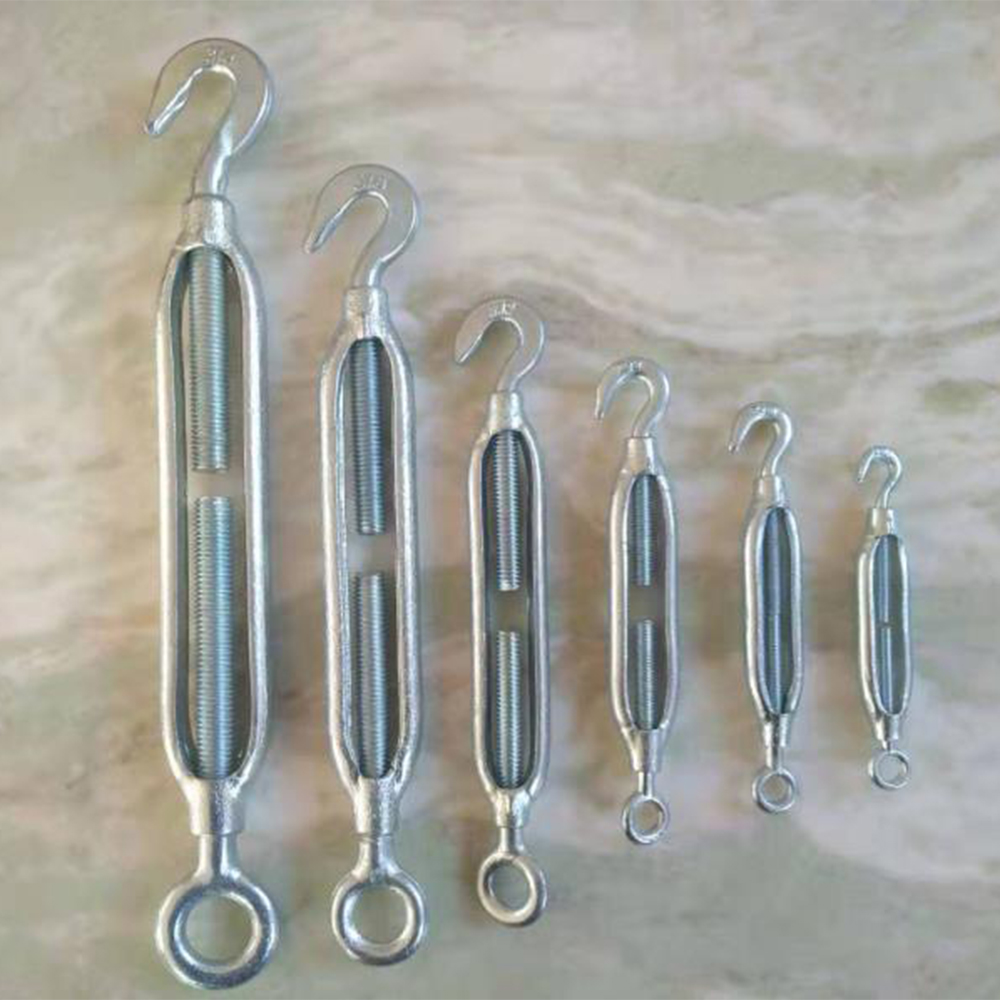

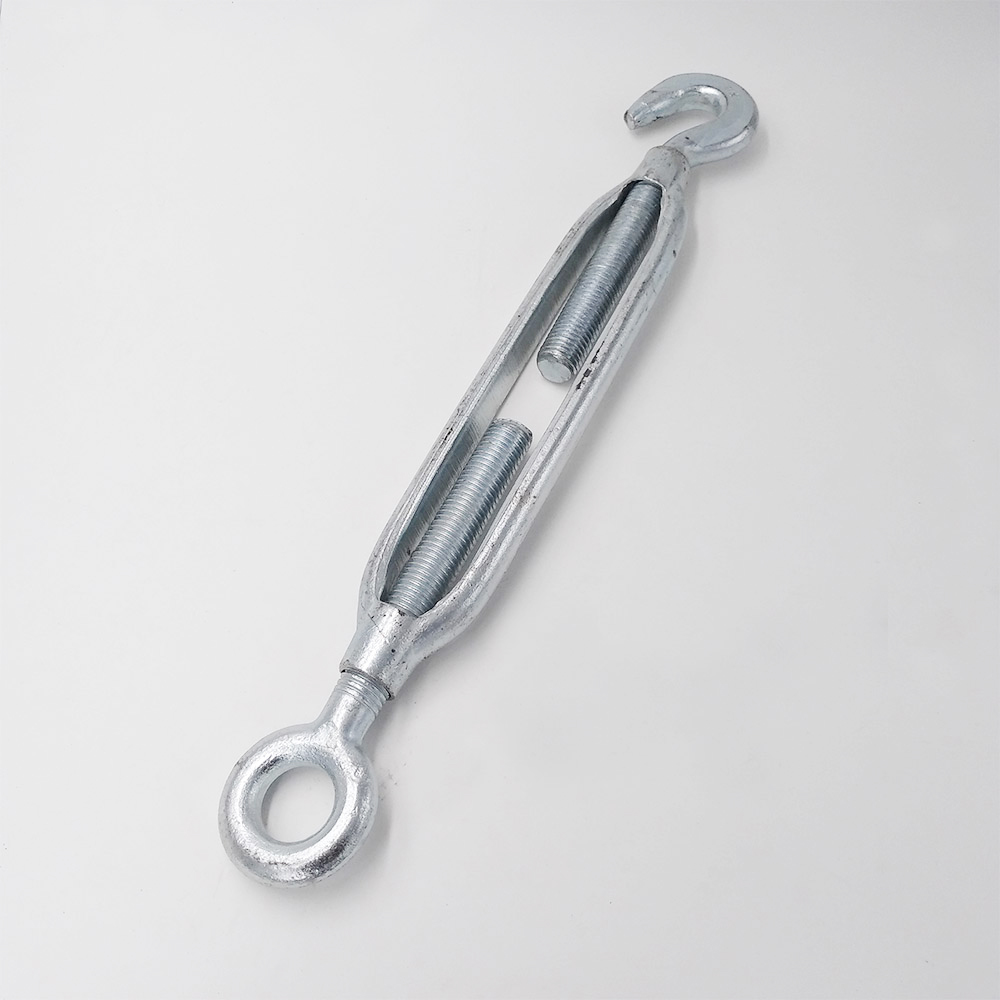

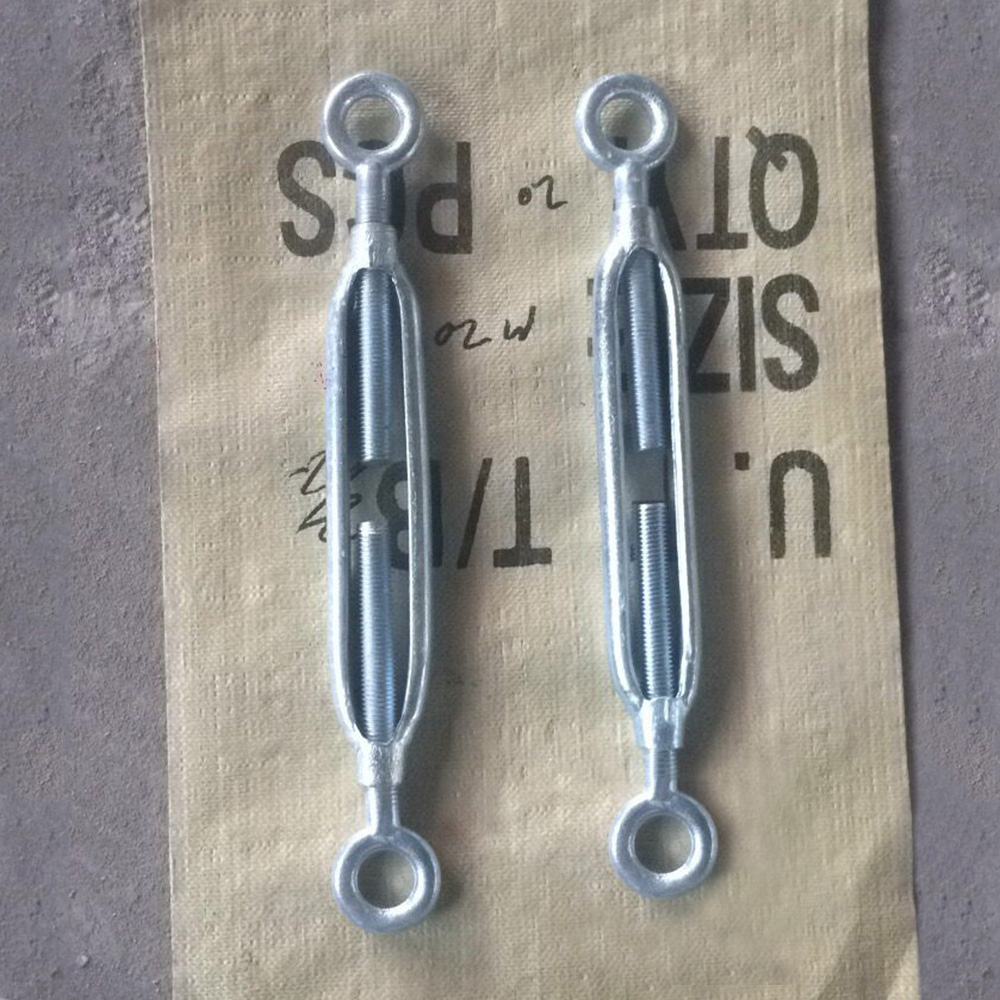

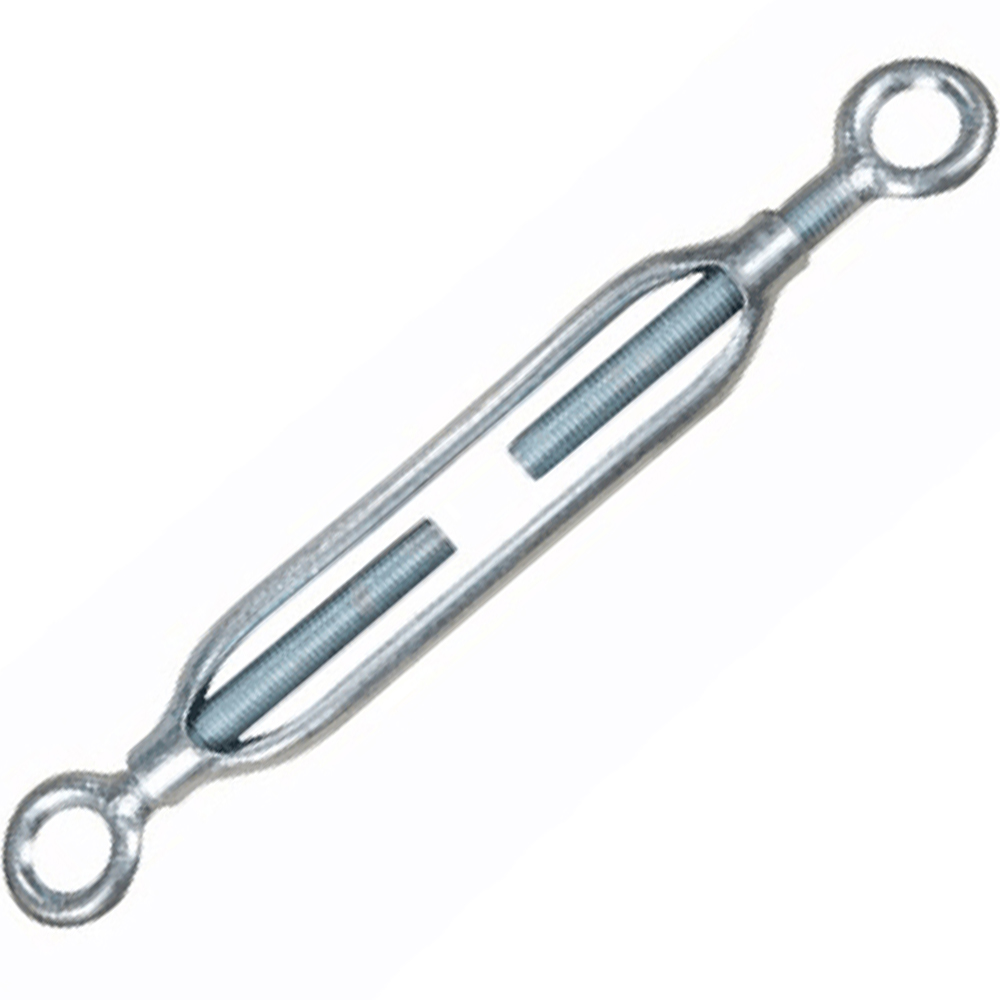

Galvanized Turnbuckle Open Body Hook Eye / Hook Hook / Eye Eye Turnbuckle Heavy Duty Steel Wire Rope Cable Turnbuckle
* Place of Origin:China
* Brand Name:CHONGHONG
* Product name:Wire Roe Turnbuckles
* Standard:JIS Type
* Material:Carbon Steel
* Size:6mm to 50mm
* Surface Treatment:Galvanized
* Also Available in Stainless steel 304 or 316,Color Painted, High polished, Mirror Polished,Hot Dipped Galvanized, Electro Galvanized or Self colored etc.
* Color:Silver

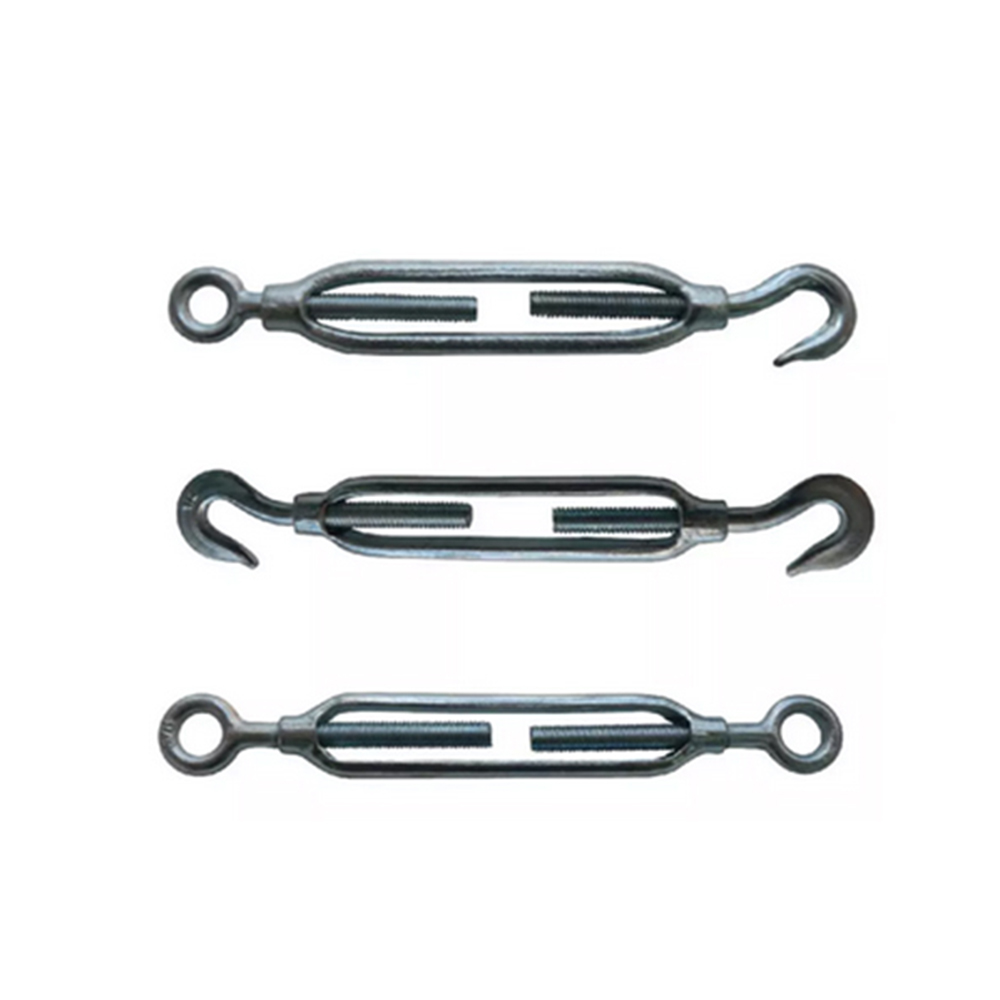

* Type:Eye/hook, Jaw/eye, hook/hook, jaw/jaw, eye/eye, Stub End etc.
* Technology:Forged
Detail Information

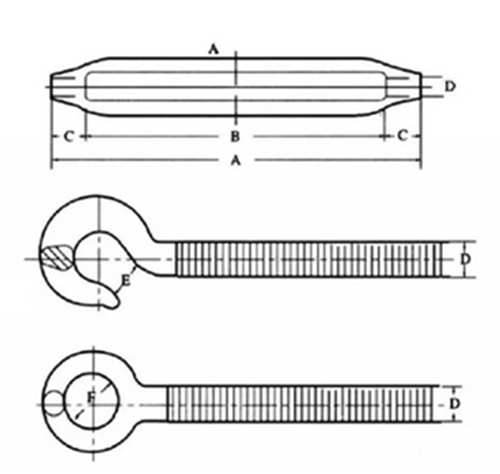

| NOMINAL SIZE D | BODY ONLY | EYE&EYE | HOOK&EYE | HOOK&HOOK | WITH STUBS | ||||||||||||||
| A | B | C | T.L | W/PC | F | T.L | W/PC | T.L | W/PC | E | T.L | W/PC | H | I(A2) | G | W/PC | |||
| mm | in | mm | in | mm | mm | Ton | Kg | mm | Ton | Kg | Ton | Kg | mm | Ton | Kg | mm | mm | mm | Kg |
| 6 | 1/4 | 100 | 4 | 78 | 11 | 1 | 0.08 | 10 | 0.1 | 0.116 | 0.04 | 0.114 | 9 | 0.04 | 0.112 | 80 | 50 | 5.3 | 0.112 |
| 8 | 5/16 | 125 | 5 | 100 | 12.5 | 1.2 | 0.15 | 12 | 0.2 | 0.22 | 0.08 | 0.218 | 9 | 0.08 | 0.215 | 100 | 63 | 6.9 | 0.22 |
| 9 | 3/8 | 150 | 6 | 120 | 12.5 | 1.5 | 0.17 | 16 | 0.5 | 0.3 | 0.15 | 0.293 | 11 | 0.15 | 0.29 | 130 | 75 | 8.3 | 0.273 |
| 12 | 1/2 | 200 | 8 | 164 | 18 | 2 | 0.29 | 20 | 2 | 0.58 | 0.35 | 0.585 | 16 | 0.35 | 0.57 | 150 | 100 | 11.2 | 0.51 |
| 16 | 5/8 | 250 | 10 | 202 | 21.5 | 3 | 0.52 | 22 | 3 | 1.07 | 0.7 | 1.05 | 19 | 0.7 | 1.03 | 180 | 125 | 14.2 | 0.95 |
| 19 | 3/4 | 300 | 12 | 250 | 25 | 4 | 0.85 | 28 | 4 | 1.77 | 1 | 1.78 | 20 | 1 | 1.77 | 220 | 150 | 17.2 | 1.62 |
| 22 | 7/8 | 325 | 13 | 269 | 28 | 5 | 1.17 | 33 | 5 | 2.55 | 1.5 | 2.58 | 21 | 1.5 | 2.6 | 250 | 165 | 20.3 | 2.34 |
| 25 | 1 | 350 | 14 | 285 | 32.5 | 6 | 1.69 | 35 | 6 | 3.79 | 2 | 3.77 | 26 | 2 | 3.72 | 270 | 175 | 23.3 | 3.27 |
| 32 | 1-1/4 | 400 | 16 | 310 | 45 | 8 | 3.51 | 36X70 | 10 | 7.6 | 3 | 7.52 | 34 | 3 | 7.44 | 300 | 200 | 29 | 6.52 |
| 38 | 1-1/2 | 450 | 18 | 350 | 55 | 10 | 5.08 | 40X80 | 15 | 13.5 | 4 | 12.8 | 35 | 4 | 22 | 330 | 225 | 38 | 13 |
| 44 | 1-3/4 | 500 | 20 | 386 | 57 | - | 9 | - | - | - | - | - | - | - | 22 | - | 250 | 44 | - |
| 50 | 2 | 550 | 22 | 420 | 65 | - | 11.5 | - | - | - | - | - | - | - | 29 | - | 275 | 50 | - |
* Place of Origin:China
* Brand Name:CHONGHONG
* Product name:Wire Roe Turnbuckles
* Standard:JIS Type
* Material:Carbon Steel
* Size:6mm to 50mm
* Surface Treatment:Galvanized
* Also Available in Stainless steel 304 or 316,Color Painted, High polished, Mirror Polished,Hot Dipped Galvanized, Electro Galvanized or Self colored etc.
* Color:Silver
* Type:Eye/hook, Jaw/eye, hook/hook, jaw/jaw, eye/eye, Stub End etc.
* Technology:Forged
* Application:Liftings Fittings
* Usage: Assemble with wire rope
* Packaging: Polybag, carton or as per customer's requirements
* Special specifications can also be produced according to drawing and sample.
Related type:
DIN1478 Type and DIN1480 Type, European Type, JIS Type, Korean Type, U.S. Type, Commercial Type,Open body and Closed body Type, Standard or Nonstandard etc.
Other related products:
Hooks, Eye bolts & Nuts, Turnbuckles, Wire Rope Clips, Shackles , Chain accessories, Thimbles, Load binders, Connecting Links, Master Links, Anchors, Lashing fittings and many other rigging hardwares.
Galvanized Rigging Hardware includes shackles, turnbuckles, wire rope clips, thimbles, and hooks, all made from high-strength steel with hot-dip galvanization for superior corrosion resistance. These components are essential for lifting, securing, and load control applications across construction, marine, transportation, and industrial sectors. The galvanized coating ensures long service life in harsh outdoor or marine environments. Features include high tensile strength, rust protection, reliable load-bearing performance, and compatibility with wire ropes and chains, making them ideal for both heavy-duty and general rigging operations.
