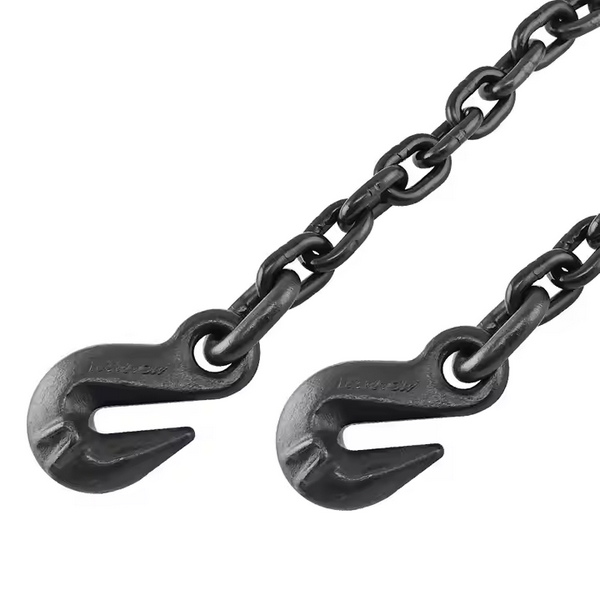

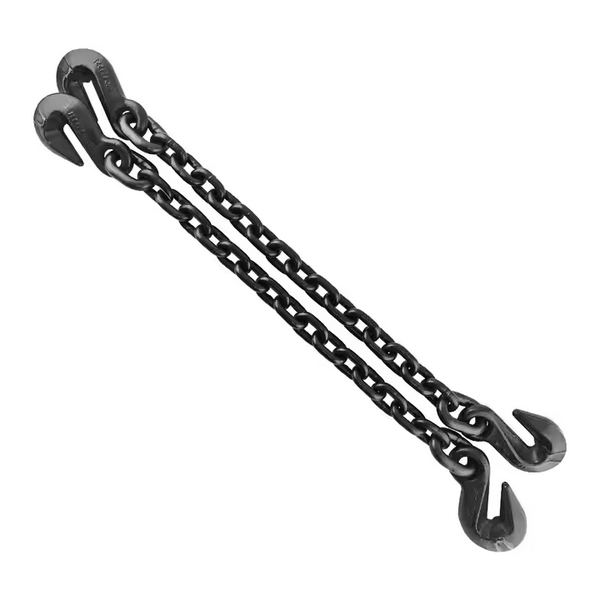

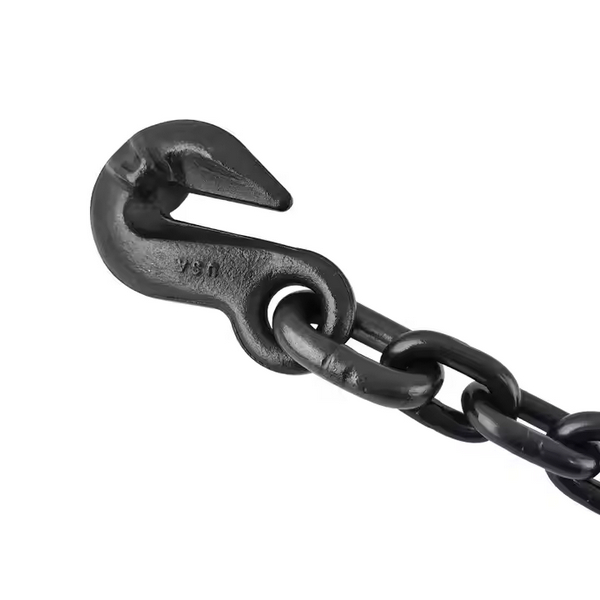

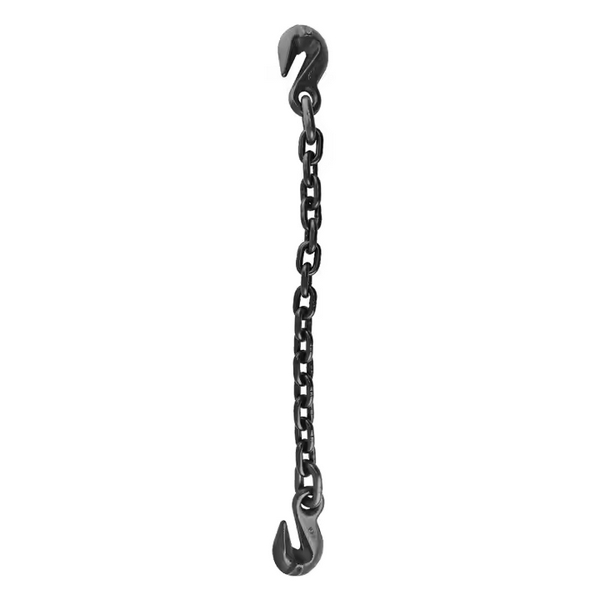

G80 Tie Down Load Galvanized Chain With Eye Shortening Grab Hook
Material: High Quality Alloy Steel/Carbon Steel
Surface treatment: Black, galvanized
Manufacture standard: G80/70
Package: Iron Drum，Wooden Drum，Gunny Bag or as required
Product marking: required by client.
Detail Information
| Chain Diameter | Length | W.L. | Weight/pc | |
| mm | in | m | t | kg |
| 8 | 5/16" | 6 | 2 | 8.5 |
| 8 | 5/16" | 9 | 2 | 12.64 |
| 10 | 3/8" | 6 | 3.2 | 14.16 |
| 10 | 3/8" | 9 | 3.2 | 20.75 |
| 13 | 1/2" | 6 | 5.4 | 24.86 |
| ITEM NO. | WEIGHT(Kg) | WLL(T) | B.L(T) | E±0.5 | φ±1 | H±1 | R±2 | L±2 | M±1 |
| 6 | 0.14 | 1.12 | 4.48 | 8 | 13.5 | 17.9 | 51.4 | 75.3 | 45.5 |
| 7/8 | 0.245 | 2 | 8 | 10.8 | 18 | 20 | 61.5 | 91.2 | 53 |
| 10 | 0.65 | 3.15 | 12.6 | 13 | 20 | 29 | 80 | 122 | 71 |
| 13 | 1.39 | 5.3 | 21.2 | 16.5 | 26 | 42.8 | 99.7 | 158 | 90 |
| 16 | 2.2 | 8 | 32 | 20 | 30.5 | 47.7 | 104 | 169 | 113 |
| 20 | 4.6 | 12.5 | 50 | 25 | 37.5 | 56 | 140 | 219 | 143 |
| 22 | 8.2 | 15 | 60 | 28 | 44 | 68 | 165 | 259 | 160 |
| 26 | 9.8 | 21.2 | 84.8 | 30 | 44 | 77 | 188.8 | 298 | 171 |
| 32 | 19.4 | 31.5 | 126 | 38 | 57 | 95 | 228 | 361 | 229 |
STEEL LINK CHAIN
SPECIFICATION:
1)Standerd: EN standard,ASTM/NACM standard, DIN standard,UK standard.
2)Grade: G100 G80 G70 G43 G30 and commercial Link Chain
3)Materlal: Alloy Steel, Carbon Steel, EN1677 Materlal.
4)Surface :Self color,Zinc plated,Hot dip galv,Powder Coated,Painted.
5)Packing: PP/Gunny bag or cartons on pallet,steel drums on pallets,plasticdrums on pallet,wooden case or according to customers requirement.
USA Standard Chain with Hooks is manufactured to meet ASTM and NACM standards, ensuring uniform strength, durability, and safety. Typically made from high-strength alloy or carbon steel with zinc or hot-dip galvanized finishes, these chains are designed for heavy-duty load binding, lifting, and towing applications. They are widely used in transportation, construction, and industrial sectors for securing cargo, machinery, and equipment. Each chain and hook assembly undergoes proof testing to verify load capacity and mechanical reliability. Key features include high tensile strength, wear resistance, corrosion protection, and compliance with U.S. safety regulations for lifting and rigging operations.
